PA-6812ER Wide Angle Passive Infrared Sensor - Resistor Base

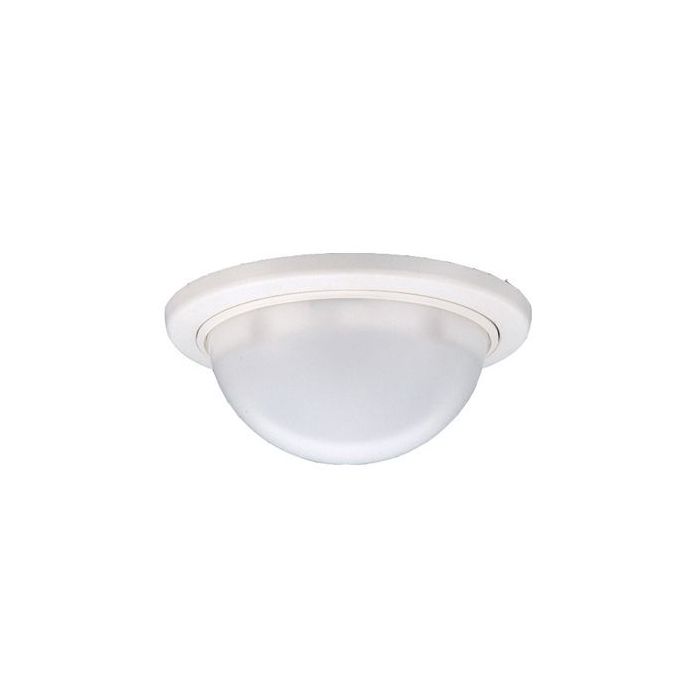

The PA-6812ER is a TAKEX wide-angle passive infrared sensor with resistor-based wiring options on the base unit. It provides 40 ft (12 m) maximum coverage and is designed for indoor ceiling mounting, with optional wall mounting using BCW-401.
This variant is suited to alarm installations that need a wide-angle PIR with selectable resistor circuits, contact output and count settings. The separate base-unit terminals, snap-in sensor body and pattern selector help installers set the coverage and wiring configuration cleanly.
Key Features
- Combines wide-angle 12 m PIR coverage with selectable resistor wiring options.
- Supports alarm and tamper signalling from the detector base.
- Allows coverage adjustment by installation height and maximum protection distance.
- Provides pulse-count and sensitivity settings for site-specific tuning.
- Uses a snap-in base and sensor format for more practical ceiling installation.
- Catalogue Family:
- ALARM SENSOR
- Model:
- PA-6812ER
- Product Type:
- Alarm Sensor
- Detection System:
- Passive infrared
- Coverage:
- Wide angle, 40 ft (12 m) max.
- Sensitive Zone:
- 17 pairs
- Supply Voltage:
- 10.5 V to 30 V DC, non-polarity
- Current Consumption:
- 25 mA max.
- Alarm Output:
- Dry contact semiconductor N.C./N.O. changeover; reset approx. 2 sec.; selectable resistor system
- Tamper Output:
- Dry contact circuit line N.C. only; selectable resistor system
- Adjustment:
- Vertical 30 degrees; horizontal 15 degrees on mounting hole of base
- Count Changeover:
- 1/2/3/4 changeover
- Ambient Temperature:
- -15 degrees C to +55 degrees C without condensation
- Mounting Position:
- Indoor ceiling; wall mount with optional BCW-401
- Weight:
- 130 g
- Appearance:
- ABS resin body; PE resin cover
