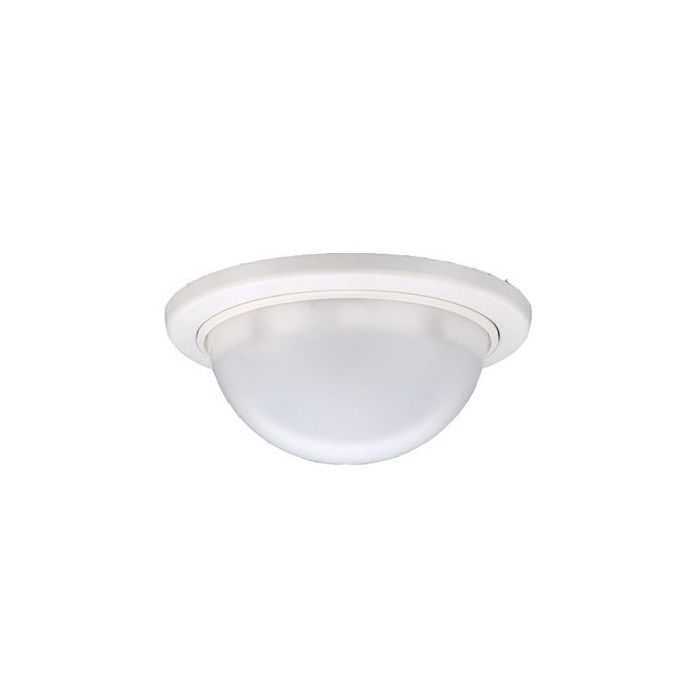

PA-6810E 360 Degree Ceiling Mount PIR Detector
PA-6810E is a TAKEX PA-6800 series passive infrared detector with 360-degree coverage for indoor ceiling mounting. The compact dome design features a snap-in sensor and base arrangement for simplified installation and servicing.
Designed for indoor applications requiring wide-area ceiling-mounted motion detection, the detector features adjustable sensitivity, selectable pulse count, alarm contact options, and alarm memory functions to suit a range of installation environments.
Key Features
- Provides 360-degree passive infrared coverage from a compact ceiling-mounted detector.
- Snap-in sensor and base design simplifies installation and maintenance.
- Adjustable sensitivity and pulse count allow detector performance to be tailored to the installation.
- Solid-state PhotoMOS alarm output provides quiet and reliable switching.
- Alarm and memory LED indicators assist with event identification and system diagnostics.
- Catalogue Family:
- ALARM SENSOR
- Model:
- PA-6810E
- Product Type:
- Alarm Sensor
- Coverage:
- 360 degree round protection, 59 ft (18 m) max.
- Detection System:
- Passive infrared
- Supply Voltage:
- 9 V to 18 V DC, non-polarity
- Current Consumption:
- N.C.: 25 mA or less; N.O.: 35 mA or less
- Alarm Signal:
- Dry contact semiconductor, N.C./N.O. selectable; reset approx. 2 sec.; 30 V AC/DC 0.25 A
- Alarm Memory:
- Auto reset or manual control
- Ambient Temperature:
- -15 deg C to +55 deg C without condensation
- Mounting Position:
- Indoor ceiling; wall mount with optional BCW-401
- Appearance:
- ABS resin body; PE resin cover
