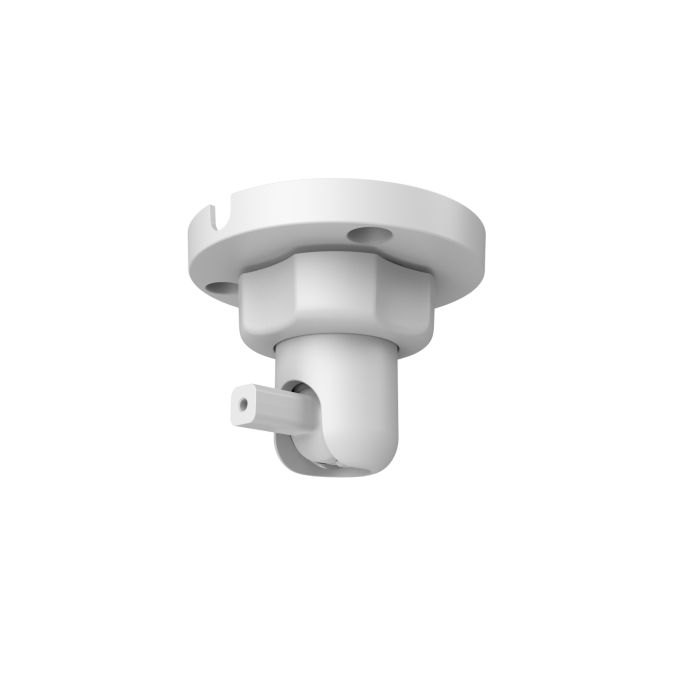

ARA33A Dahua DHI-ARA33A Detector Bracket - Wall And Ceiling Mount
The ARA33A is a Dahua DHI-ARA33A detector bracket for wall or ceiling mounting. It features horizontal and vertical angle adjustment with PC and aluminium alloy construction.
It suits installations where compatible Dahua detectors need positioning flexibility on walls or ceilings. It is compatible with the ARD1233 series and ARD2231 series and provides basic anti-corrosion protection.
Key Features
- Wall and ceiling mounting options support flexible detector placement.
- Angle adjustment helps align the detector with the intended coverage area.
- PC and aluminium alloy construction provides a durable bracket design.
- Compact bracket dimensions suit detector mounting applications.
- Compatible with the applicable supported detector models.
- Catalogue Family:
- SCREAMERS & STROBES
- Model:
- DHI-ARA33A
- Product Type:
- Screamers & Strobes
- Installation:
- Wall mount; ceiling mount
- Rotation Angle:
- Wall: horizontal +/-90 deg vertical +/-70 deg; ceiling: horizontal +/-180 deg vertical +/-70 deg
- Dimensions:
- 70.0 mm diameter x 55.1 mm
- Material:
- Aluminium
- Applicable Model:
- ARD1233 series; ARD2231 series
- Operating Temperature:
- -10 deg C to +55 deg C
- Operating Humidity:
- 10% to 90% RH
- Weight:
- 45 g
