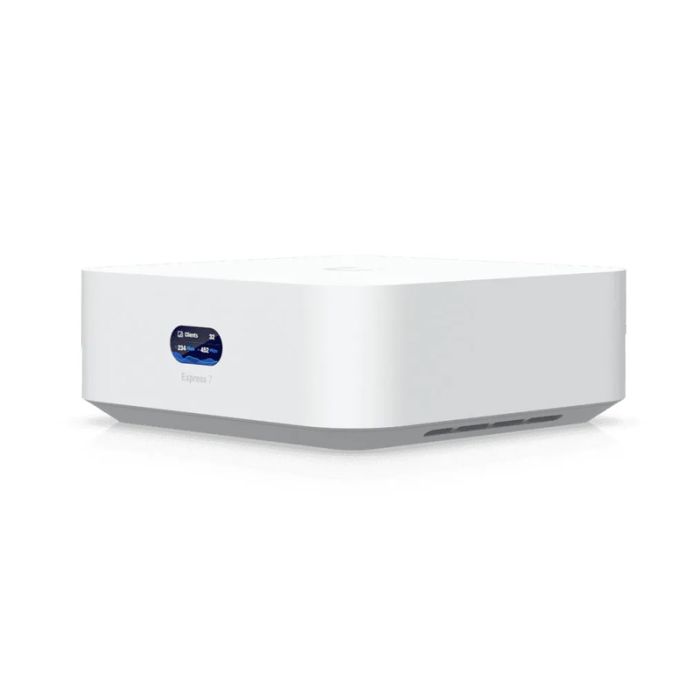

UX7 UniFi Express 7 Cloud Gateway - WiFi 7 with 10 GbE WAN
UX7 is a compact UniFi Express 7 cloud gateway with integrated WiFi 7, a 10 GbE RJ45 WAN port, and a 2.5 GbE RJ45 LAN port. It supports up to 30 managed UniFi devices, 300 simultaneous connected users, and IDS/IPS throughput of up to 2.3 Gbps.
Integrated 6 GHz, 5 GHz, and 2.4 GHz radios, USB-C power, a 0.96-inch status display, and UniFi Network application support provide wired, wireless, and gateway functionality in a compact desktop form factor.
Key Features
- Combines a cloud gateway and WiFi 7 access point in a compact desktop unit.
- 10 GbE RJ45 WAN and 2.5 GbE RJ45 LAN ports support high-speed network connectivity.
- Integrated IDS/IPS provides advanced network security features.
- Supports up to 30 managed UniFi devices and 300 simultaneous connected users.
- USB-C power input and a 0.96-inch status display support straightforward desktop deployment.
- Catalogue Family:
- POWER SUPPLY
- Dimensions:
- 117 x 117 x 42.5 mm
- Form Factor:
- Compact desktop
- Managed Unifi Devices:
- 30
- Simultaneous Users Connected:
- 300
- Default WAN Ports:
- (1) 10 GbE RJ45
- LAN Ports:
- (1) 2.5 GbE RJ45
- Ids/Ips Throughput:
- 2.3 Gbps
- Wi-Fi Standard:
- 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
- Wi-Fi Throughput:
- 6 GHz 5.7 Gbps; 5 GHz 4.3 Gbps; 2.4 GHz 688 Mbps
- MIMO:
- 2 x 2 DL/UL MU-MIMO on 6 GHz, 5 GHz, and 2.4 GHz
- Power Method:
- USB Type-C 5V DC/5A
- Power Supply:
- USB Type-C 5V DC/5A adapter included
- Max. Power Consumption:
- 22W
- Processor:
- Quad-core Arm Cortex-A53 at 1.5 GHz
- System Memory:
- 3 GB
- Weight:
- 422 g
- Enclosure Material:
- Polycarbonate
- Lcm Display:
- 0.96-inch status display
- Operating Temperature:
- -10 to 40 deg C (14 to 104 deg F)
- Operating Humidity:
- 5 to 95% noncondensing
- Certifications:
- CE, FCC, IC
- Unifi Network Requirement:
- Version 9.0.108 and later
- Product Type:
- Power Supply
