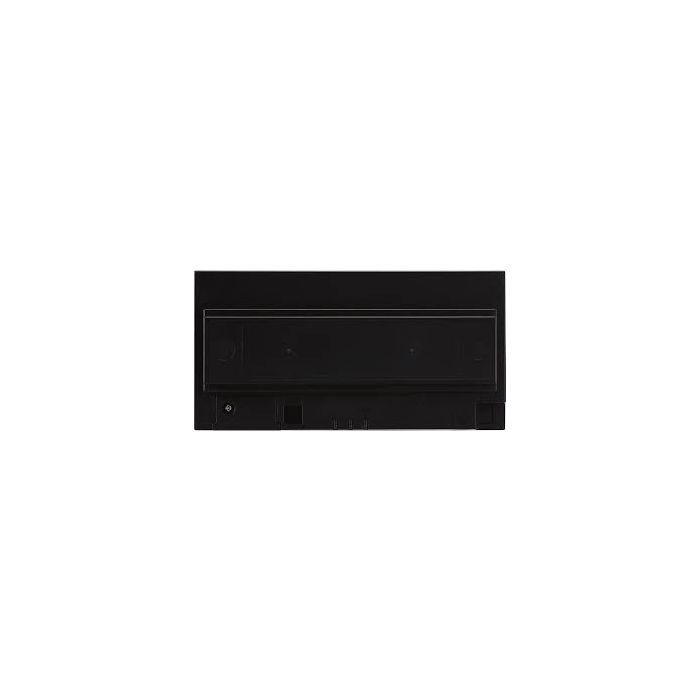

IXGW-GW Gateway Adaptor for IXG Intercom App - PoE
The IXGW-GW is an Aiphone IXG Series gateway adaptor that enables calls to the Intercom App by connecting the IXG system to the Internet. It is powered by Power-over-Ethernet to IEEE 802.3af Class 0 and supports Ethernet networking with the protocol set required for IXG app communication.
Designed for wall-mounted DIN rail installation, the adaptor suits apartment, commercial and guard-unit IXG deployments where mobile app answering and communication are required. The app functions confirmed for the gateway include answering calls, communication, monitoring, audio and video recording, door unlocking during supported call states, incoming call history, microphone mute and call rejection settings.
Key Features
- Connects the IXG system to Intercom App calling through an Internet-connected gateway adaptor.
- Supports Android and iOS mobile app cooperation for flexible station communication.
- Allows up to 8 mobile devices to be registered with each Residential, Commercial or Guard Unit.
- Uses PoE network power to simplify deployment at fixed intercom equipment locations.
- Provides a wall-mounted DIN rail format with a self-extinguishing ABS resin housing.
- Catalogue Family:
- INTERCOM
- Model:
- IXGW-GW
- Product Type:
- Intercom
- Power Source:
- Power-over-Ethernet (IEEE 802.3af Class 0)
- Current Consumption:
- Standby 2.4 W; maximum 2.9 W (48 V DC)
- LAN:
- Ethernet (10BASE-T, 100BASE-TX), Auto MDI/MDI-X-compatible
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTPS, RTP, RTCP, SRTP, SRTCP, IGMP, MLD, SFTP, DHCP, NTP, DNS, MQTT, ICE, DTLS, SDP
- Encryption:
- TLS 1.0, TLS 1.1, TLS 1.2
- Packet Delivery:
- Unicast, multicast
- Channels:
- 8
- Ambient Temperature:
- -10 to +50 degrees C
- Mounting:
- Wall-mounted (DIN rail)
- Material:
- Plastic
- Colour:
- Black
- Dimensions:
- 108.5 mm x 210 mm x 61 mm
- Weight:
- Approx. 320 g; approx. 350 g with DIN rail
