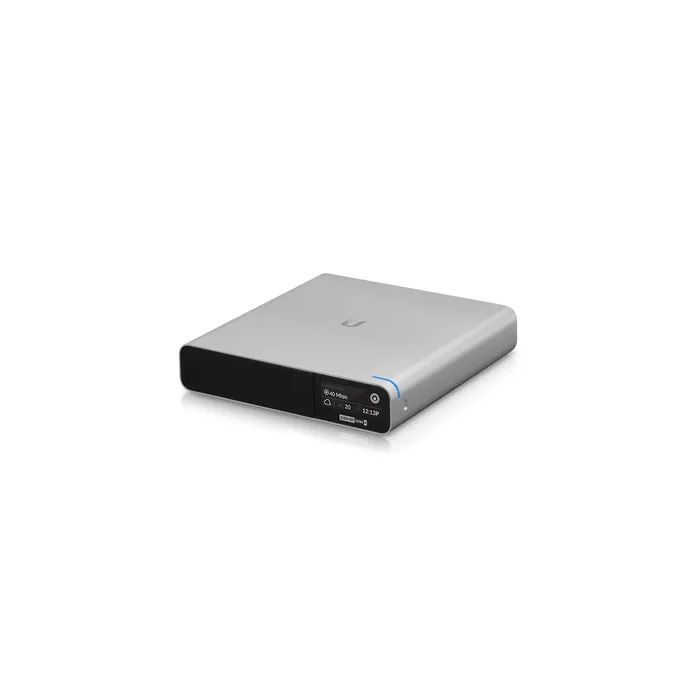

UCK-G2-SSD UniFi CloudKey+ Console with 1 TB SSD
The UCK-G2-SSD is a UniFi CloudKey+ console with a pre-installed 1 TB 2.5-inch SATA SSD for UniFi management and Protect storage workflows. Its exact tech specs confirm an octa-core Arm Cortex-A53 based chip, 3 GB RAM, 32 GB eMMC, a GbE RJ45 network port, Ethernet and Bluetooth management, and a 1.42-inch grey-scale OLED display.
This compact console is useful where a dedicated UniFi appliance is preferred over running controller software on a separate computer or server. PoE support and the included storage capacity make it a practical option for network sites that need always-on UniFi administration and local camera recording capacity in a small hardware footprint.
Key Features
- Combines UniFi console management and local storage in a compact hardware appliance.
- Pre-installed SSD supports Protect recording without relying on a separate storage server.
- PoE power input helps simplify installation where suitable network power is available.
- OLED status display gives quick local visibility without opening the management interface.
- Bluetooth and Ethernet management options support straightforward deployment and administration.
- Catalogue Family:
- POWER SUPPLY
- Dimensions:
- 131.2 x 27.1 x 134.2 mm
- Weight:
- 560 g
- Enclosure Material:
- Anodised aluminium
- Processor:
- Octa-core Arm Cortex-A53 based chip
- Memory:
- 32 GB eMMC / 3 GB RAM
- SSD Capacity:
- 1 TB 2.5-inch SATA SSD
- Networking Interface:
- (1) GbE RJ45 port
- Management Interface:
- Ethernet / Bluetooth
- Power Method:
- PoE or Quick Charge 2.0/3.0 power adapter 9V DC 2A
- Max. Power Consumption:
- 9.6W
- Display:
- 1.42-inch grey-scale OLED
- Operating Temperature:
- 0 to 35°C (32 to 104°F)
- Operating Humidity:
- 20 to 80% noncondensing
- Certifications:
- FCC, CE, IC
- Unifi Protect Camera Capacity:
- 24 HD, 14 2K or 8 4K cameras when dedicated to UniFi Protect
- Product Type:
- Power Supply
