IXGW-TGW.E2 Telephone Gateway Adaptor for IXG App and Phone Calls

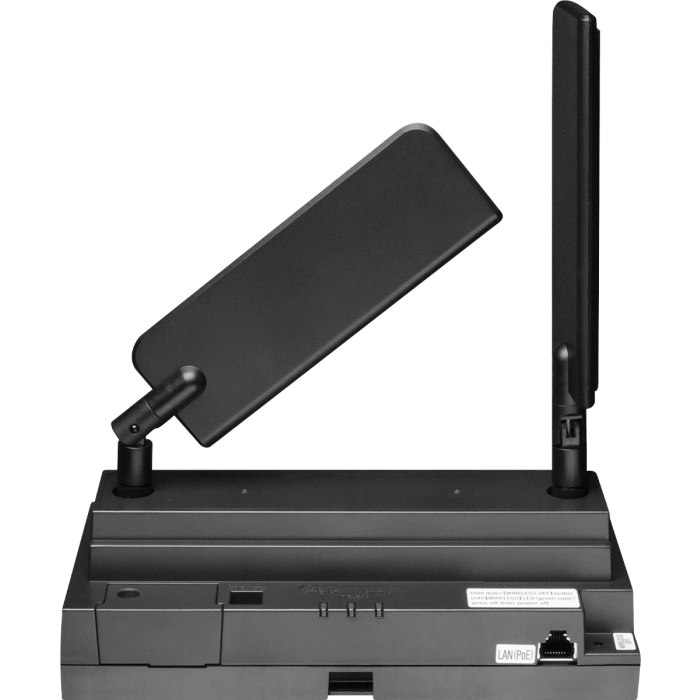

The IXGW-TGW.E2 is an Aiphone telephone gateway adaptor for connecting an IXG system to the Intercom App and phone calling through Internet access. The gateway uses PoE for power, includes a LAN (PoE) port and nano SIM card slot, and supports wired Internet or supported 3G/4G wireless connection paths for app and phone use.
For multi-tenant sites, the adaptor helps extend IXG communication beyond fixed stations by supporting mobile app registration and telephone answering workflows. It is suited to DIN rail wall mounting near network equipment, with IXG Support Tool configuration and confirmed cellular, protocol and security specifications for planned system deployment.
Key Features
- Extends IXG system communication to mobile app and phone answering paths.
- Supports flexible Internet connectivity through wired LAN or supported cellular networks.
- Helps residents, commercial units and guard units use registered mobile app access.
- DIN rail wall mounting keeps the gateway tidy near network and PoE infrastructure.
- IXG Support Tool setup support helps integrators configure stations across the system.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Model Reference:
- IXGW-TGW.E2
- Power:
- PoE (IEEE 802.3af Class 0 standard)
- Power Consumption:
- Standby 2.8 W; max. 6.7 W (48 V DC)
- LAN:
- Ethernet (10BASE-T, 100BASE-TX); Auto MDI/MDI-X compatible
- Wireless Communication:
- LTE (B1/B3/B7/B8/B20/B28A), WCDMA (B1/B3/B8), GSM (900/1800)
- Supported SIM Card Size:
- nano SIM
- Channels:
- Intercom App: 8; phone: 1
- Mobile App Registration:
- Up to 8 mobile devices can be registered with each Residential Unit, Commercial Unit or Guard Unit
- Phone Registration:
- Up to 1 phone can be registered in each Residential Unit room
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTPS, RTP, RTCP, SRTP, SRTCP, IGMP, MLD, SFTP, DHCP, NTP, DNS, MQTT, ICE, DTLS, SDP
- Encryption System:
- TLS 1.2, IEEE 802.1X
- Packet Transmission:
- Unicast and multicast
- Intercom App Functions:
- Calling, answer and communication, monitoring, audio/video recording, door unlock, QR code unlock, call history, messages, multi-property incoming calls, microphone mute and call rejection
- Phone Functions:
- Answer and communication; unlock a door during communication
- Operating Ambient Temperature:
- -10 to +50 deg C (+14 to +122 deg F)
- Mounting:
- Wall-mounted (DIN rail)
- Material:
- Plastic
- Unit Colour:
- Black
- Weight:
- 430 g; approx. 540 g with DIN rail and terminal antennas
- Dimensions:
- 210 mm (W) x 108.5 mm (H) x 61 mm (D)
- Included Items Shown:
- DIN rail, terminal antennas and stoppers
- Configuration Tool:
- IXG Support Tool application for creating the setting file for all stations
