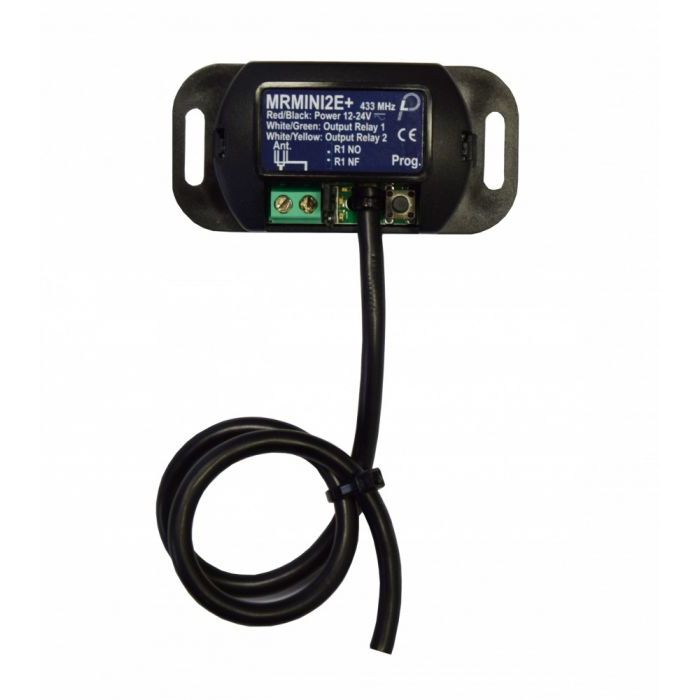

MRMINI2E-PLUS Prastel 2-Channel Compact Receiver
The MRMINI2E-PLUS is a Prastel compact radio receiver for 433.92 MHz access-control and garage-door systems. The receiver operates from a 12-24 V AC/DC power supply and features two relay outputs, memory for up to 1000 codes, monostable or bistable output modes, and encrypted communication support when used with SLIM transmitters.
It is suited to small receiver installations where a compact two-channel controller is needed for gate, door, or automation radio control. The ability to handle standard, rolling-code, and encrypted transmitter modes helps installers keep receiver selection flexible while preserving memory capacity and relay-control options.
Key Features
- Compact two-channel radio receiver
- 433.92 MHz operating frequency
- Memory for up to 1000 transmitter codes
- Monostable or bistable relay output modes
- 12-24 V AC/DC power input with support for standard, rolling-code, and encrypted transmitter modes
- Catalogue Family:
- POWER SUPPLY
- Power Supply:
- 12-24 V AC/DC, 50/60 Hz
- Reception Frequency:
- 433.92 MHz
- Code Memory:
- 1000 codes
- Relay Outputs:
- 2
- Output Types:
- Monostable, bistable
- Contact Capacity:
- 0.5 A at 24 V AC/DC
- Dimensions / Weight:
- 72 x 35 x 21 mm / 45 g
- Working Temperature:
- -20 to +55 degrees C
- Product Type:
- Power Supply
