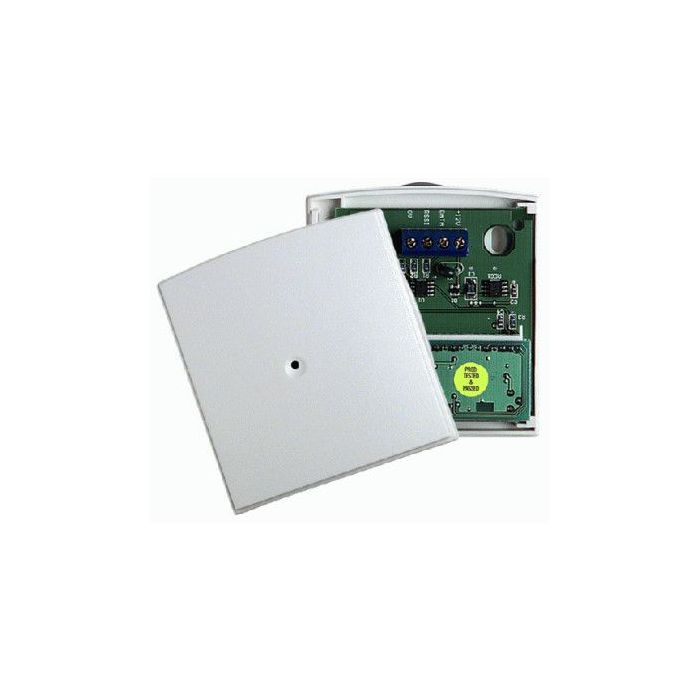

106-179 Ness SCR Plus Single Channel Receiver
The 106-179 Ness SCR Plus is a flexible standalone receiver for Ness radio devices at 304 MHz. It receives arm, disarm, panic, auxiliary and low-battery channels from Ness radio keys, radio PIRs and radio reeds.
It suits installations that need a relay or open-collector response from Ness radio transmitters without replacing the main system. Learn-mode programming, selectable relay behaviour and support for up to four transmitters make it useful for focused remote switching and alarm signalling tasks.
Key Features
- Receives supported Ness radio events for local output control
- Provides a focused receiver option for small standalone switching tasks
- Supports installer-friendly enrolment through learn-mode programming
- Offers relay and open-collector output paths for different site needs
- Helps extend radio-key or sensor use into practical low-voltage control
- Catalogue Family:
- SYSTEM COMPONENTS
- Product Type:
- System Components
- Radio Frequency:
- 304 MHz
- Operating Voltage:
- 10-15 V DC
- Quiescent Current:
- 25 mA with relay activated
- Relay Output:
- C.O. contacts rated 1 A at 28 V max
- Open Collector Output:
- 100 mA at 12 V low on alarm
- Maximum Radio Devices:
- 4
- Dimensions:
- 73 mm H x 73 mm W x 27 mm D
- Weight:
- 73 g
