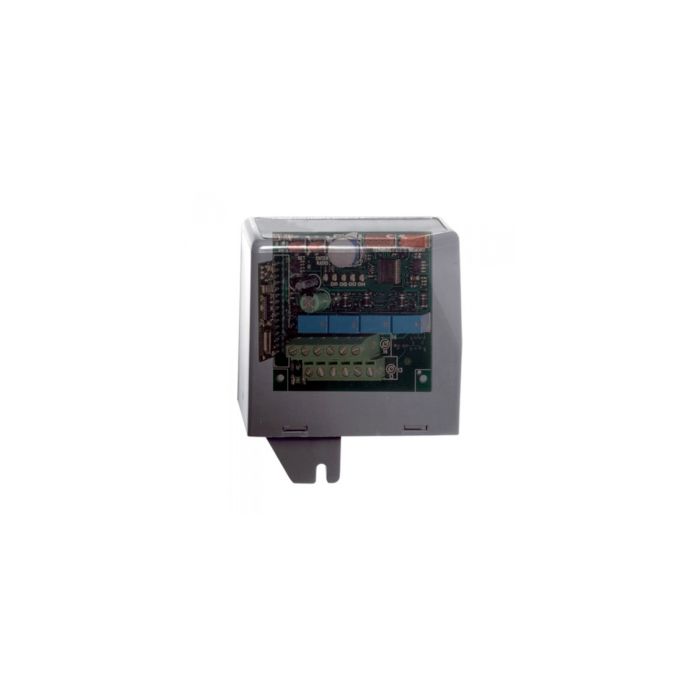

MR4E-PLUS Prastel 4-Channel Rolling Code Receiver - 433.92 MHz
The MR4E-PLUS is a Prastel MR4E+ radio receiver for door and opening systems, supporting standard, rolling-code, and encrypted transmitters. It operates from a 12-24 V AC/DC supply, receives at 433.92 MHz, stores up to 1000 memorisable codes, provides four-channel operation, and supports monostable, bistable, or timed output modes.
Designed for access-control and automation systems, the receiver supports direct and free programming modes, encrypted transmitter operation, and flexible relay output assignment for a range of installation requirements.
Key Features
- Four-channel receiver platform supports multiple controlled outputs from one unit.
- Rolling-code and encrypted transmitter compatibility supports secure radio-control installations.
- Free and direct programming modes allow flexible relay configuration.
- 1000-code memory capacity supports multi-user access-control deployments.
- 12-24 V AC/DC input supports common automation power supplies.
- Catalogue Family:
- POWER SUPPLY
- Power Supply:
- 12-24 V AC/DC
- Receiving Frequency:
- 433.92 MHz
- Code Memory:
- 1000 codes
- Channels:
- 4 for MR4E+ variant
- Output Types:
- Monostable, bistable, timed
- Size / Weight:
- 77 x 110 x 45 mm / 110 g
- Working Temperature:
- -20 to +55 degrees C
- Compliance Reference:
- Prastel declares receiver MR2E+/MR4E+ complies with Directive 2014/53/EU
- Product Type:
- Power Supply
