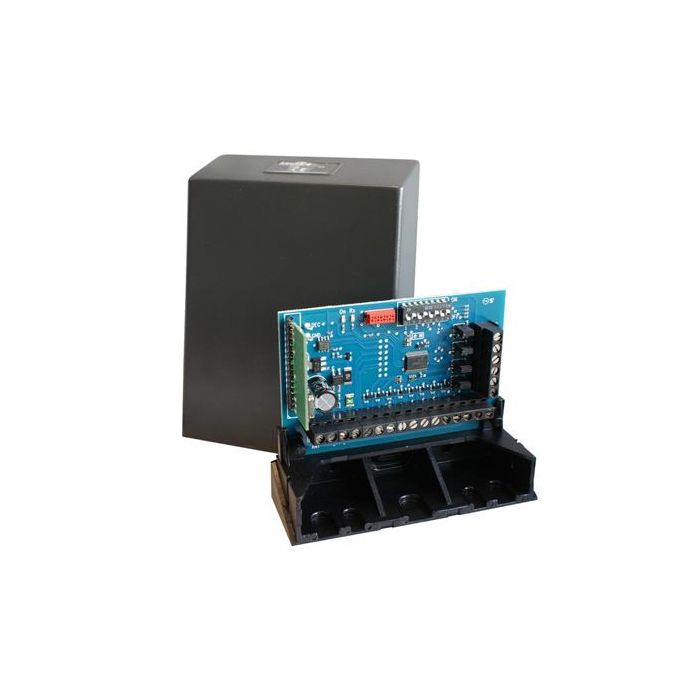

MRRE4 Prastel 4-Channel Wiegand Radio Receiver
The MRRE4 is a Prastel MRRE-4 receiver designed to connect to access-control central units as a radio reader. It operates from a 12-24 VAC/DC supply, receives at 433.920 MHz, uses a digital 24-bit code, and supports Wiegand 26-bit, 30-bit, 37-bit, and Data Clock output formats.
Designed for access-control systems, the receiver receives radio transmitter codes and passes them to controller inputs by channel. DIP-switch protocol selection and channel-specific Wiegand outputs provide flexible integration with compatible access-control controllers.
Key Features
- Converts Prastel radio credentials into Wiegand or Data Clock outputs for access controllers.
- Four-channel output structure supports channel-specific access-control logic.
- DIP-switch protocol selection simplifies matching the receiver to controller requirements.
- 12-24 VAC/DC input supports common access-control panel power supplies.
- Supports Wiegand 26-bit, 30-bit, 37-bit, and Data Clock output formats.
- Catalogue Family:
- POWER SUPPLY
- Power Supply:
- 12-24 VAC/DC
- Average Consumption:
- 30 mA
- Reception Frequency:
- 433.920 MHz
- Code:
- Digital 24 bits
- Output Formats:
- Wiegand 26-bit, Wiegand 30-bit, Wiegand 37-bit, Data Clock
- Operating Temperature:
- -15 to +55 degrees C
- Dimensions / Weight:
- 140 x 110 x 40 mm / 230 g
- Product Type:
- Power Supply
