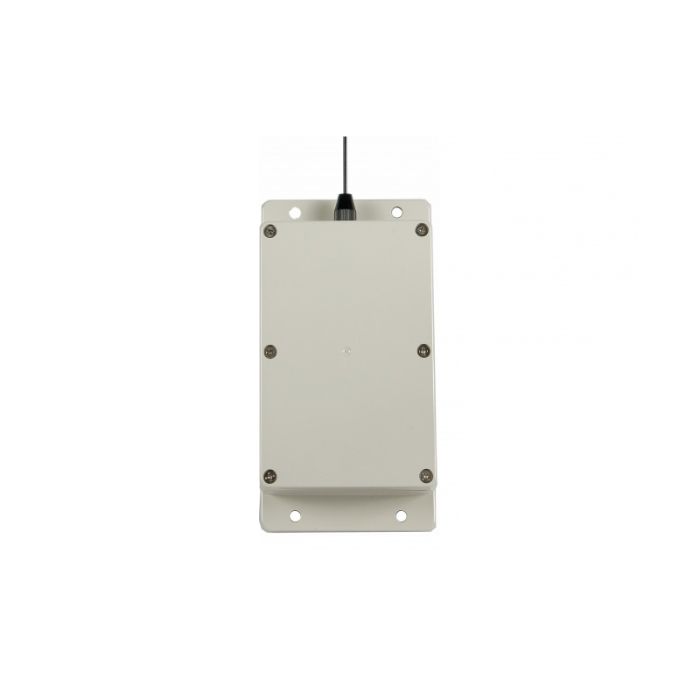

SPRRW01 Activor Four Channel Wiegand Receiver
The SPRRW01 is an Activor long-range four-channel Wiegand receiver operating at 433 MHz. It is supplied with an antenna and mounting case, supporting a 26-bit Wiegand format, 9-15 VDC operation, 15 mA operating current at 12 VDC, and dimensions of 190 x 100 x 45 mm.
Designed for access control applications, the receiver supports both pass-through and site-code verification modes. The included antenna and IP67-rated case provide reliable installation and protection in demanding environments.
Key Features
- Four-channel Wiegand receiver for multi-output access control applications
- Supports pass-through and site-code verification operating modes
- 433 MHz operation with 26-bit Wiegand output
- Includes antenna and mounting case
- IP67-rated enclosure for enhanced environmental protection
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Format:
- 26-bit Wiegand, 433 MHz
- Voltage:
- 9-15 VDC
- Operating Current:
- 15 mA at 12 VDC
- Dimensions:
- 190 x 100 x 45 mm
- Operating Modes:
- Pass-through and site-code verification
- Case Rating:
- IP67
- Antenna:
- Included
- Product Type:
- Transmitters & Receivers
