JVS-1F JV Series Flush Video Intercom Kit

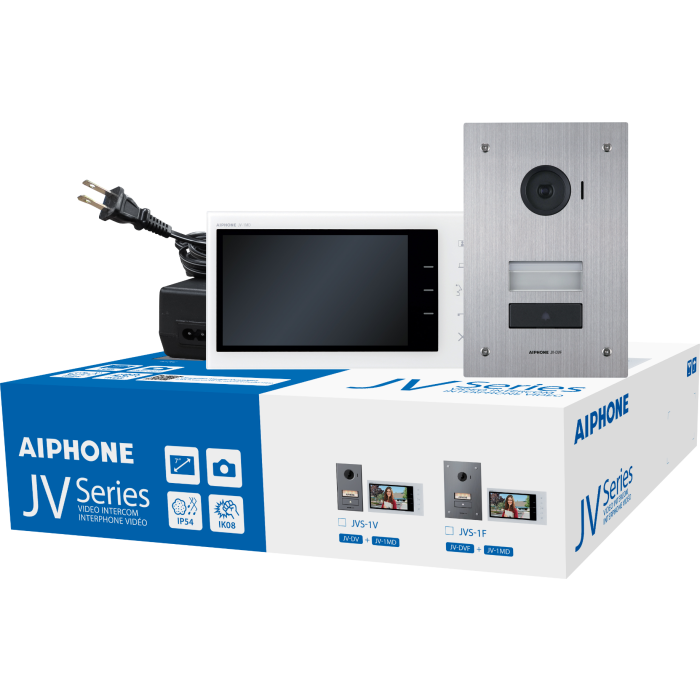

The JVS-1F is an Aiphone JV Series 1-to-1 colour video intercom kit built around the JV-1MD master station, JV-DVF flush-mount vandal-resistant door station and PS-2420UL power supply. The component datasheets confirm a 7 inch master monitor, two-wire door-station connection, picture memory up to 30 call images and door release or option output control from the master station.
This kit suits installations that need a stainless steel flush-mount entry station with a white indoor master monitor. The JV-DVF door station is with a stainless steel front panel, IP54 and IK08 ratings, a white LED illuminator for low-light conditions and a lit bell icon, while the included PS-2420UL provides DC 24 V power for the JV system.
Key Features
- Combines the key JV Series components needed for a single-door colour video intercom installation.
- Provides a flush stainless steel entry station for sites needing a more vandal-resistant door point.
- Supports clear visitor viewing through the JV-1MD 7 inch indoor monitor.
- Helps users manage calls with hands-free or push-to-talk communication and stored call images.
- Simplifies power planning with the PS-2420UL DC 24 V supply included in the kit.
- Catalogue Family:
- INTERCOM
- Model:
- JVS-1F
- Product Type:
- Intercom
- Included Master Station:
- JV-1MD
- Included Door Station:
- JV-DVF flush-mount vandal-resistant door station
- Included Power Supply:
- PS-2420UL
- Master Station Screen:
- 7 inch TFT LCD, WVGA
- Master Station Communication:
- Hands-free auto-voice actuation; push-to-talk, release-to-listen
- Master Station Picture Memory:
- Up to 30 call images
- Door Station Material:
- Stainless steel front panel; flame resistant ABS main unit
- Door Station Mounting:
- Flush mount
- Door Station Ratings:
- IP54; IK08
- Door Station Camera:
- 1/5 inch colour CMOS
- Door Station Minimum Illumination:
- Approx. 5 lux
- Power Supply Output:
- DC 24 V, 2 A
- Power Supply Input:
- AC 100-240 V, 50/60 Hz
