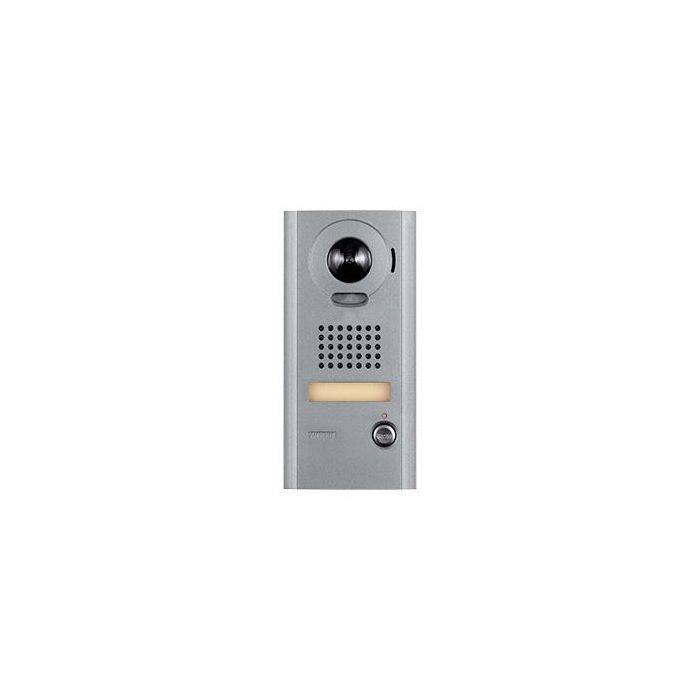

ISDV Aiphone IS Series Surface Mount Video Door Station
The ISDV is a surface-mount video door station for the Aiphone IS Series. It uses aluminium die-cast construction, open-voice handsfree communication, a 1/4 inch colour CMOS camera, 170 degree wide view and CAT-5e/6 connection to the IS-CCU or IS-SCU.
It suits indoor or outdoor entry points where the IS system needs a vandal- and weather-resistant door station with video, call button, speaker and microphone. Power is supplied from the controller over the connected cabling arrangement.
Key Features
- Surface-mount video door station for IS Series entry points.
- Wide-view colour camera supports visitor identification from the master station.
- Aluminium die-cast housing suits the surface-mounted IS-DV model.
- CAT-5e/6 connection keeps the station aligned with IS controller wiring.
- Catalogue Family:
- INTERCOM
- Model:
- ISDV
- Product Type:
- Intercom
- System:
- Aiphone IS Series
- Power Source:
- Supplied from IS-CCU/SCU
- Communication:
- Open voice hands-free
- Camera:
- 1/4 inch colour CMOS
- Minimum Illumination:
- 5 lux
- Camera Angle:
- Approx. 170 degree horizontal wide view
- Mounting:
- Surface directly to wall
- Housing:
- Aluminium die-cast
- Temperature:
- -10 to 60 C
- Dimensions:
- 8-1/2 in H x 4-3/16 in W x 1-1/8 in D
- Weight:
- Approx. 520 g
