JOS-1FW Aiphone JO Series Wi-Fi Video Intercom Kit - JO-DVF Flush Stainless Door Station

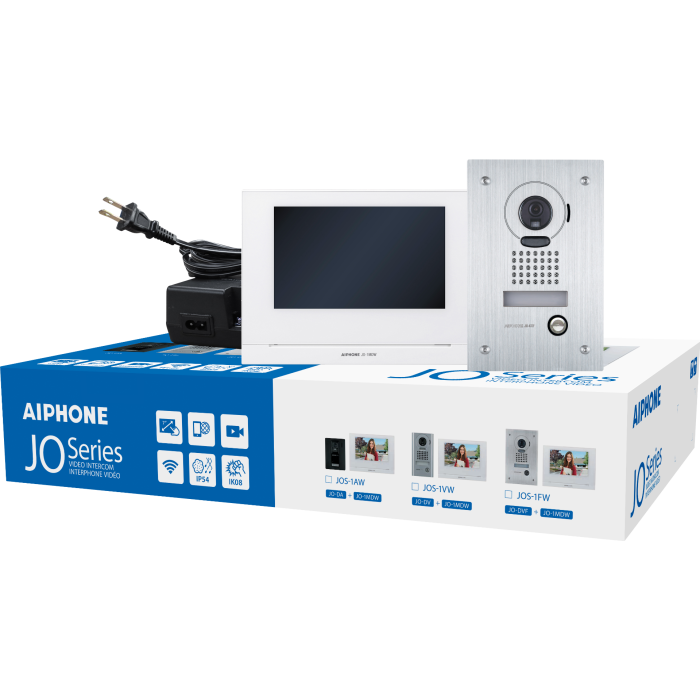

The JOS-1FW is an Aiphone JO Series app-compatible video intercom kit comprising one JO-1MDW Wi-Fi master station, one JO-DVF flush mount stainless steel video door station and one PS-1820UL power supply.
Designed for single-door JO Series installations, the kit combines a flush mount stainless steel door station with a Wi-Fi-enabled 7 in touchscreen master station. The JO-1MDW supports 2.4 GHz Wi-Fi, up to eight mobile apps, video memory, and auto-voice or touch-to-talk communication, while the JO-DVF provides a flush-mounted video entry station.
Key Features
- Includes the JO-1MDW master station, JO-DVF door station and PS-1820UL power supply.
- Flush mount stainless steel door station provides a clean recessed installation.
- Supports up to eight registered mobile apps for remote visitor answering.
- Video recording to internal memory or microSDHC storage supports review of missed calls.
- Designed as a complete JO Series video intercom kit for single-door installations.
- Catalogue Family:
- INTERCOM
- Model:
- JOS-1FW
- Kit Components:
- 1 x JO-DVF, 1 x JO-1MDW and 1 x PS-1820UL
- System Type:
- JO Series 1 x 1 app-compatible video intercom box set
- Master Station:
- JO-1MDW 7 in TFT LCD touchscreen
- Master Power Source:
- 18V DC, PS-1820UL
- Master Current Consumption:
- Maximum 450 mA
- Wireless Protocol:
- 2.4 GHz 802.11 b/g/n
- Mobile App Capacity:
- Up to 8 mobile apps
- Door Release Contacts:
- N/O 24V AC/DC, 1A
- Door Station:
- JO-DVF flush mount colour video door station
- Door Station Power Source:
- Supplied from JO Series master or expansion station
- Door Station Camera:
- CMOS
- Door Station Wiring:
- 2-conductor PE insulation, Aiphone wire 871802
- Door Station Wiring Distance:
- 330 ft
- Door Station Operating Temperature:
- -20 to +60 deg C
- Door Station Dimensions:
- 209 H x 135 W mm
- Door Station Weight:
- Approx. 580 g
- Door Station Rating:
- IP54, IK07
- Product Type:
- Intercom
