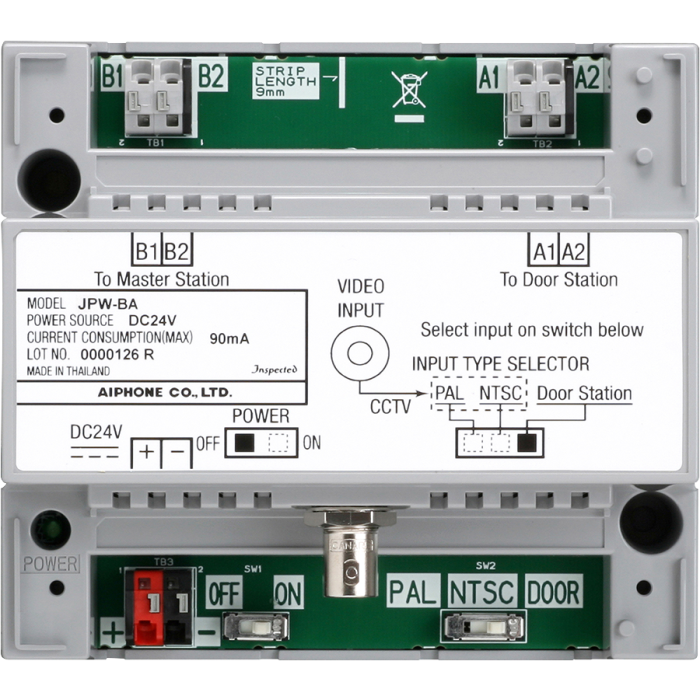

JPW-BA Aiphone JP Series Long Distance CCTV Adaptor
The JPW-BA is an Aiphone long distance and CCTV adaptor for JP Series systems. Used as a long-distance adaptor, it extends the video door station distance up to 980 ft; used as a CCTV adaptor, it allows an analogue CCTV camera to connect in conjunction with the GT-D audio door station.
It suits JP installations that need either extra door-station cable distance or an analogue camera input, with each adaptor used for one feature only. Surface wall or DIN rail mounting keeps the adaptor practical for protected equipment locations.
Key Features
- Extends JP video door station distance for installations that exceed standard cable limits.
- Allows analogue CCTV camera integration when used with the supported audio door station context.
- Single-feature adaptor approach helps keep system design clear and modular.
- Surface or DIN rail mounting supports tidy equipment-room placement.
- 24V DC operation aligns the adaptor with the JP Series power-supply platform.
- Catalogue Family:
- INTERCOM
- Model:
- JPW-BA
- Product Type:
- Intercom
- System:
- Aiphone JP Series
- Power Source:
- 24V DC - use PS-2420UL
- Wire Type:
- 18 AWG 2-conductor
- CCTV Input:
- BNC / coax for CCTV camera
- Mounting:
- Surface wall mount or DIN rail (W-DIN11)
- Operating Temperature:
- 32 to 104 deg F (0 to 40 deg C)
- Dimensions:
- 4-5/16 in H x 4-7/8 in W x 2-7/16 in D
- Weight:
- Approx. 0.44 lb (200 g)
- Long-Distance Function:
- Extends distance to video door station up to 980 ft
- Usage Rule:
- Each JPW-BA is used for one feature only
