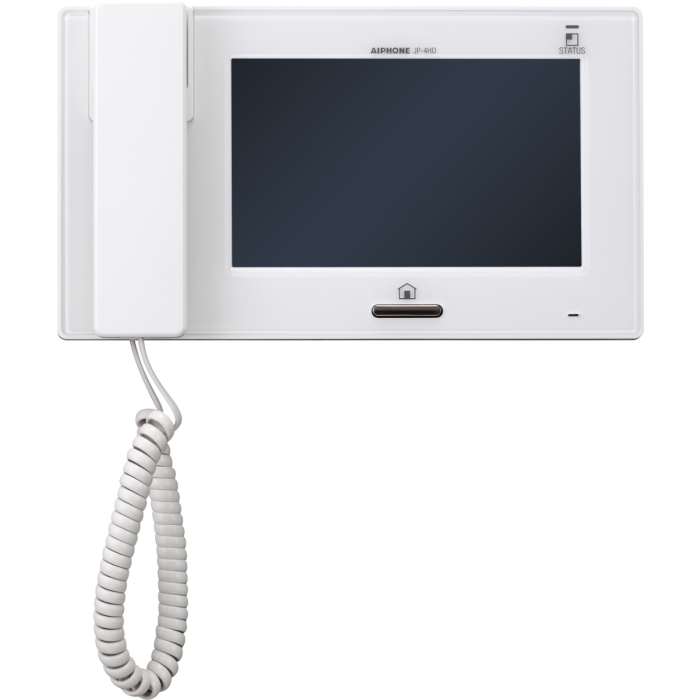

JP-4HD Aiphone JP Series Video Sub Master Station - 7 in Screen
The JP-4HD is an Aiphone JP Series hands-free colour video intercom sub master station. It provides a 7 in colour LCD screen, wall mounting and JP system connection through CAT5e straight non-shielded cabling.
It suits JP installations that need additional indoor monitoring or room communication points away from the main JP-4MED master station. The station supports hands-free auto-voice communication, wall mounting on a 3-gang box and system power from a 24V DC power supply.
Key Features
- Adds a JP sub master answering point to expand indoor coverage.
- 7 in colour LCD screen supports visitor viewing from another room.
- Hands-free auto-voice communication helps users answer without lifting a handset.
- CAT5e connection between JP stations supports structured internal station wiring.
- Wall-mount design with 3-gang box support keeps the installation neat.
- Catalogue Family:
- INTERCOM
- Model:
- JP-4HD
- Product Type:
- Intercom
- Power Supply:
- 24V DC from power supply
- Current Consumption:
- 200 mA
- Communication:
- Hands-free auto-voice actuation
- Ambient Temperature:
- 0 to 40 deg C
- Screen:
- 7 in colour LCD screen
- Mounting:
- Wall-mount, 3-gang box
- Material:
- Plastic
- Colour:
- White
- Dimensions:
- 255 W x 145 H x 30 D mm
- Mass:
- Approx. 780 g
