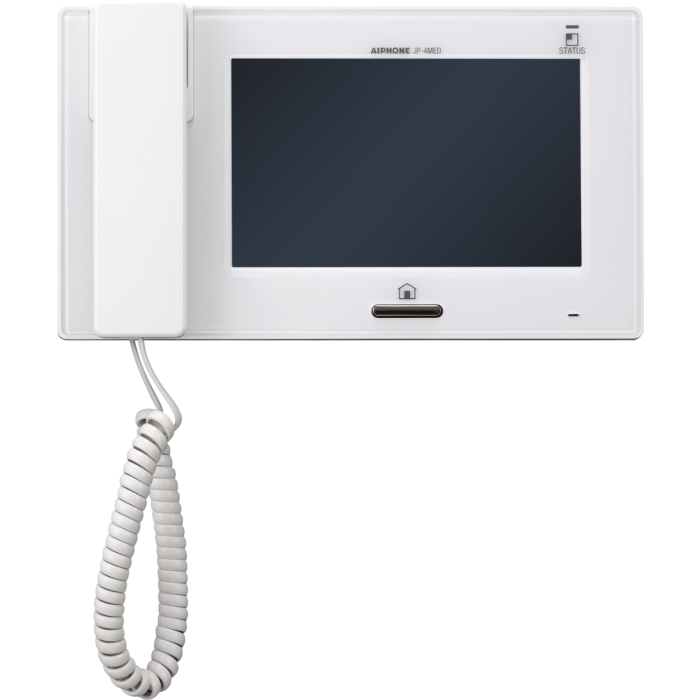

JP-4MED Aiphone JP Series Master Station - 7 in Touchscreen
The JP-4MED is an Aiphone JP Series master station with a 7 in colour touchscreen LCD. It supports hands-free auto-voice or handset communication, picture memory, door release, optional service button and station partitioning with a security code.
It suits JP video intercom installations where the master station needs to manage door calls, inside station communication and image review from one wall-mounted control point. The station connects to door stations with 18AWG two-conductor cable and to sub master stations using CAT5e or CAT6 cable.
Key Features
- Central JP master station manages door calls and indoor station communication.
- 7 in touchscreen provides clear control of monitoring, settings and call handling.
- Picture memory records visitor calls internally and to SD or SDHC media when used.
- Door release and option controls support common entry-control workflows.
- Station partitioning helps organise larger JP systems with controlled access.
- Catalogue Family:
- INTERCOM
- Model:
- JP-4MED
- Product Type:
- Intercom
- Power Source:
- 24V DC, use PS-2420UL
- Consumption:
- 340 mA maximum
- Communication:
- Handset simultaneous communication; hands-free auto-voice actuation
- Monitor:
- 7 in TFT colour touchscreen LCD
- Pixels:
- 800 x 480
- Picture Memory:
- Internal 20 calls; external 1,000 using SD or SDHC card
- Mounting:
- Surface wall mount or desk mount using MCW-S/A
- Temperature:
- 0 to 40 deg C
- Dimensions:
- 5-11/16 in H x 10-1/16 in W x 1-7/8 in D
- Weight:
- Approx. 790 g
