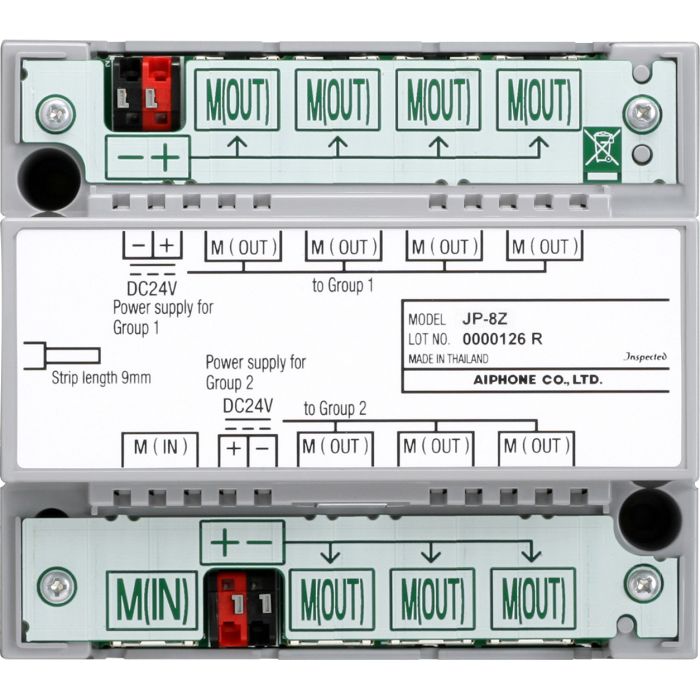

JP-8Z Aiphone JP Series 8-Way Distribution Adaptor
The JP-8Z is an Aiphone JP Series distribution adaptor used to branch wiring from the master station to additional JP-4HD sub master stations. It operates from a 24V DC power supply and is identified as compatible only with the JP Series.
It suits JP video intercom installations that need more inside stations while keeping the adaptor and power supply grouped in a protected equipment area. Surface wall or DIN rail mounting gives installers practical placement options for riser and distribution work.
Key Features
- Branches JP Series master-station wiring to support additional sub master stations.
- Helps organise larger inside-station layouts without leaving the JP system family.
- Surface wall or DIN rail mounting supports flexible equipment placement.
- Defined wiring distances help installers plan sub master and power-supply runs.
- Fire-retardant ABS housing suits protected equipment and riser locations.
- Catalogue Family:
- INTERCOM
- Model:
- JP-8Z
- Product Type:
- Intercom
- Compatibility:
- JP Series only
- Power Source:
- 24V DC supplied from power supply
- Mounting:
- Surface wall mounting or DIN rail (W-DIN11)
- Housing:
- Fire-retardant ABS plastic
- Unit Colour:
- Grey (5Y8/1 Munsell approximation)
- Operating Temperature:
- 0 to 40 deg C
- Weight:
- Approx. 210 g
- Master to Jp-8z to Sub Master Distance:
- 250 m with Cat5e
- Jp-8z to Sub Master Distance:
- 50 m with Cat5e
- Jp-8z to Power Supply Distance:
- 5 m with 22 AWG or 10 m with 18 AWG
