JOS-1AW Aiphone JO Series Wi-Fi Video Intercom Kit - JO-DA Surface Door Station

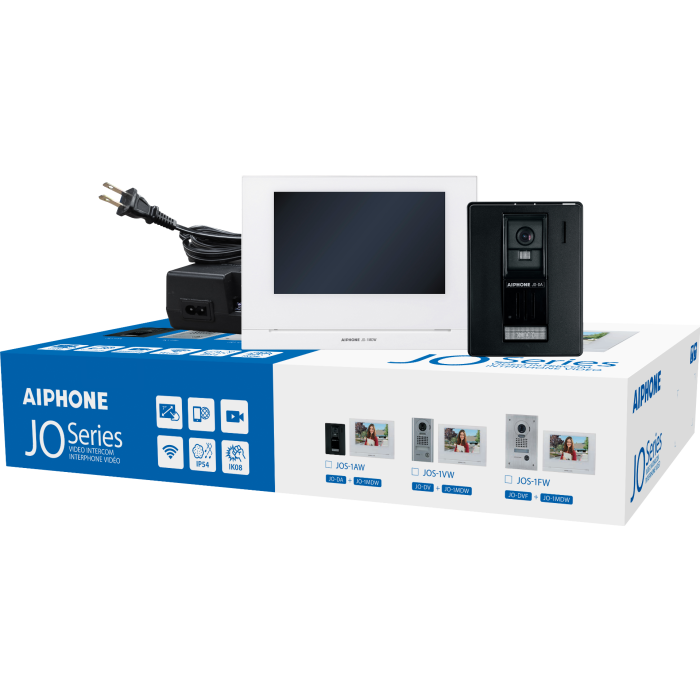

The JOS-1AW is an Aiphone JO Series app-compatible video intercom box set with one JO-1MDW Wi-Fi master station, one JO-DA surface plastic video door station and one PS-1820UL power supply. The supplied JO product sheet and installation manual both identify the kit composition.
It suits a one-door JO installation where users need a 7 in touchscreen indoor master with mobile app capability and a surface-mounted plastic door station. The JO-1MDW supports up to 8 mobile apps, VOX or touch-to-talk communication, internal and microSDHC recording, and remote answering through the Intercom App Type B when configured with a suitable Wi-Fi network.
Key Features
- Combines the JO-1MDW master, JO-DA door station and power supply in one matched kit.
- App-capable master station helps users answer visitor calls from registered mobile devices.
- Surface plastic JO-DA door station suits simple one-door entry installations.
- Video memory supports review of missed visitor calls on the station or registered app.
- Two-wire door-station connection helps keep JO system installation straightforward.
- Catalogue Family:
- INTERCOM
- Model:
- JOS-1AW
- Kit Components:
- 1 x JO-DA, 1 x JO-1MDW and 1 x PS-1820UL
- System Type:
- JO Series 1 x 1 app-compatible video intercom box set
- Master Station:
- JO-1MDW 7 in TFT LCD touchscreen
- Master Power Source:
- 18V DC, PS-1820UL
- Master Current Consumption:
- Maximum 450 mA
- Wireless Protocol:
- 2.4 GHz 802.11 b/g/n
- Mobile App Capacity:
- Up to 8 mobile apps
- Door Release Contacts:
- N/O 24V AC/DC, 1A
- Master Communication:
- Auto-voice actuation or touch-to-talk
- Door Station:
- JO-DA surface plastic video door station
- Door Station Power Source:
- Supplied from master monitor station or expansion monitor station
- Door Station Camera:
- 1/4 inch colour CMOS
- Door Station Mounting:
- Surface wall mount, directly to wall or electrical box
- Door Station Rating:
- IP54
- Product Type:
- Intercom
