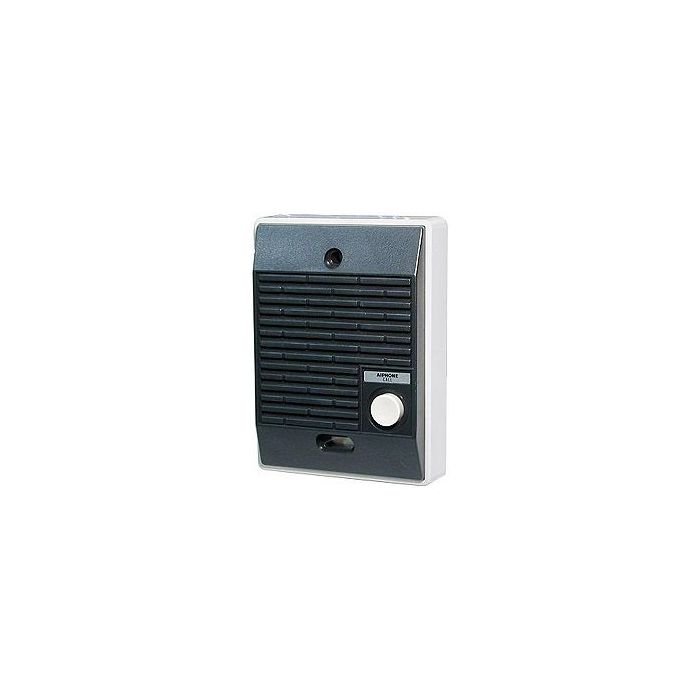

LE-D Aiphone LEF Series Surface Mount Plastic Audio Door Station
The LE-D is an Aiphone surface-mount audio door station for LEF intercom systems. LE-D and LE-DA door stations are designed to work with LEF master stations, with hands-free communication at the door station controlled by press-to-talk operation at the master.
It suits simple LEF door-entry points where a plastic surface door station is required and a single-gang installation is preferred. Two-wire operation is used for a single-master system, while three-wire wiring is shown for intermixed systems, giving installers a clear path for common LEF layouts.
Key Features
- Provides a surface audio door station for LEF door-entry communication.
- Hands-free door-side speech keeps visitors from needing a handset.
- Master-controlled press-to-talk operation keeps communication managed from inside.
- Single-master and intermixed wiring options support different LEF system layouts.
- Compact surface housing suits straightforward doorway installation.
- Catalogue Family:
- INTERCOM
- Model:
- LE-D
- Product Type:
- Intercom
- System Compatibility:
- Aiphone LEF intercom system models including LEF-3, LEF-5 and LEF-10 families
- Communication:
- Hands-free communication at door station controlled by master station press-to-talk operation
- Wiring:
- 2 wires for single-master system; 3 wires for intermixed system
- Wiring Distance:
- 120 m with 0.5 mm cable; 200 m with 0.65 mm cable; 300 m with 0.8 mm cable
- Dimensions:
- 120 H x 88 W x 29 D mm
- Mounting:
- Surface mount to single-gang box or wall surface
