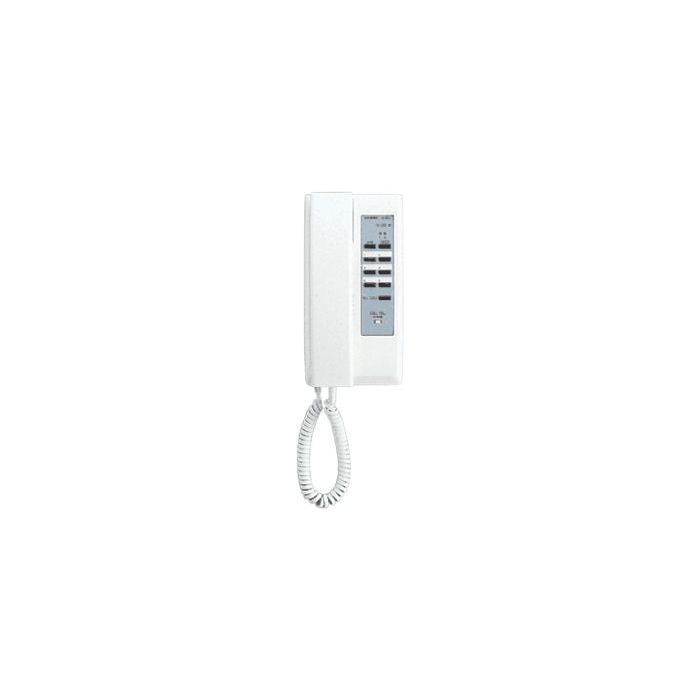

IE-8MD Aiphone IE-8 Series 6-Call Master Handset
The IE-8MD is an Aiphone 6-call chime-tone intercom master station for selective communication with up to five IE-8HD sub room stations and up to two audio IE/IF Series door stations. It features door-call LEDs, a door-monitor button, All Call button, chime volume control and a desk or wall-mountable handset design.
It supports selective room calling, All Call announcements, door monitoring and door-release control from the master handset. PanTilt video door answering can also be added when used with compatible MY-CU or MYH-CU equipment.
Key Features
- Six-call master-station format supports selective room-to-room communication.
- All Call function allows announcements to all connected stations after the pre-tone.
- Door-monitor button supports monitoring of the selected audio door station.
- Chime volume control adjusts call-tone and voice levels.
- Desk or wall mounting supports flexible installation.
- Catalogue Family:
- INTERCOM
- Model:
- IE-8MD
- Product Type:
- Intercom
- System Type:
- 6-call chime-tone intercom
- Door Station Support:
- Up to 2 audio IE/IF Series door stations
- Room Station Support:
- Up to 5 IE-8HD sub room stations
- Power Source:
- DC 12-18 V, 500 mA or AC 12-16 V, 900 mA
- Calling:
- Door calls use a 4-tone or 2-tone chime; room buttons 1-6 provide individual calling with a short audio tone and voice
- Communication:
- Handset communication following a chime or audio-tone and voice call
- Door Release Contact Capacity:
- 24 V AC/DC, 0.35 A
- Cable Requirement:
- 4-conductor cable, 0.65-1.0 mm diameter, 22-18 AWG
- Dimensions:
- 210 mm H x 110 mm W x 79 mm D
- Weight:
- 600 g (1.32 lb)
