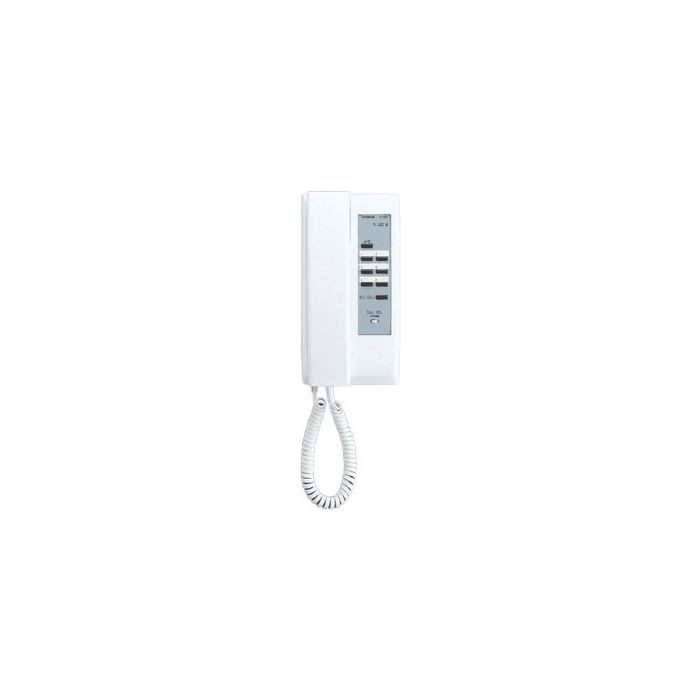

IE-8HD Aiphone IE-8 Series 6-Call Slave Handset
The IE-8HD is an Aiphone IE-8 Series sub station for the 6-call chime-tone intercom system. It is designed for use with the IE-8MD master station and supports up to five IE-8HD sub stations on a 4-conductor cable run.
The station supports residential intercom systems with up to two IE/IF Series audio door stations, providing room-to-room communication, door call answering, station-number assignment and selectable chime cut-out.
Key Features
- Expands an IE-8MD system with additional room sub stations.
- Station-number setting supports organised assignment of connected handsets.
- Selectable chime cut-out allows audible call alerts to be managed by station.
- Compatible handset design provides a consistent appearance throughout the IE-8 system.
- 4-conductor wiring supports installation within compatible IE-8 Series systems.
- Catalogue Family:
- INTERCOM
- Model:
- IE-8HD
- Product Type:
- Intercom
- System Type:
- 6-call chime-tone intercom
- Door Station Support:
- Up to 2 audio IE/IF Series door stations in an IE-8MD system
- Room Station Support:
- IE-8MD with up to 5 IE-8HD sub room stations
- Power Source:
- DC 12-18 V, 500 mA or AC 12-16 V, 900 mA for the IE-8MD intercom system
- Calling:
- Door calls use 4-tone or 2-tone chime; room buttons 1-6 provide individual call with short audio tone and voice
- Communication:
- Pick up handset when called by chime or audio tone and voice
- Door Release Contact Capacity:
- 24 V AC/DC, 0.35 A
- Cable Requirement:
- 4 conductor cable, 0.65-1.0 mm diameter, 22-18 AWG
- Dimensions:
- 210 mm H x 110 mm W x 79 mm D
- Weight:
- 520 g (1.15 lb)
