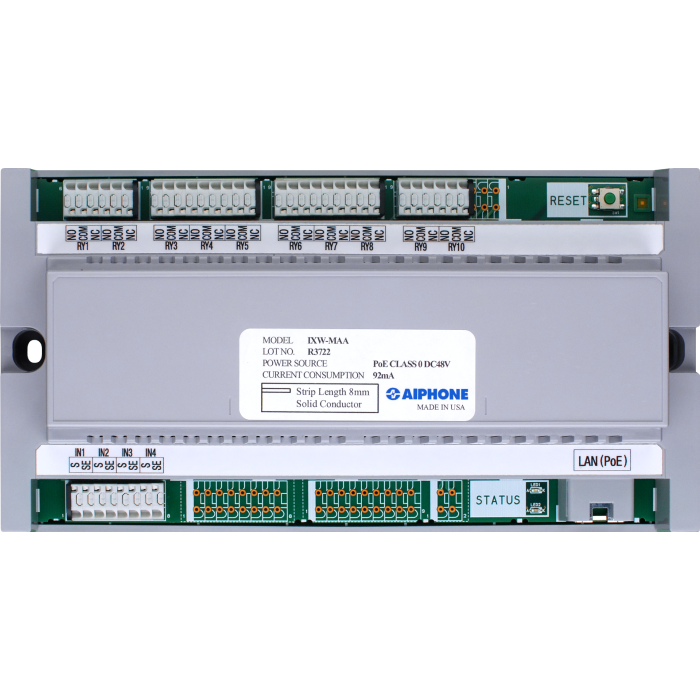

IXW-MAA Multi-Purpose Adaptor for IX and IXG Series
The IXW-MAA is an Aiphone IX Series multi-purpose adaptor with four contact inputs and ten relay outputs for site-specific control functions. It is powered by PoE to IEEE 802.3af Class 0 and is designed to extend IX or IXG installations where input events and relay actions need to be managed through the support tool environment.
The adaptor can be mounted directly to a wall or to the included 35 mm x 170 mm DIN rail, with wire terminations connecting directly to the adaptor inputs and outputs. It is programmed as an IXW-MA in IX Support Tool and as an I/O adaptor in IXG Support Tool, making it useful for structured intercom control work where relay behaviour needs to be assigned to associated stations.
Key Features
- Adds programmable I/O control to IX and IXG intercom systems without requiring a separate local power supply.
- Supports practical site automation by linking input events to station-based relay actions.
- Offers flexible placement with wall or DIN rail mounting options for equipment rooms and panels.
- Keeps commissioning clearer through support-tool programming aligned to the IXW-MAA workflow.
- Provides networked relay control in a compact adaptor format for access and signalling tasks.
- Catalogue Family:
- INTERCOM
- Model:
- IXW-MAA
- Product Type:
- Intercom
- Series:
- IX / IXG Series
- Contact Inputs:
- 4
- Relay Outputs:
- 10 Form C dry relays
- Relay Output Rating:
- 24 V AC/DC, 500 mA
- Power Source:
- PoE (IEEE 802.3af Class 0)
- Power Draw:
- 4.48 W maximum
- LAN:
- Ethernet (10BASE-T, 100BASE-TX)
- Protocols:
- IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, SFTP, DHCP, NTP, DNS
- Port Security:
- IEEE 802.1X
- Operating Temperature:
- -10 to +50 deg C
- Dimensions:
- 108 mm H x 210 mm W x 60 mm D
- Din Rail Mount:
- 35 mm W x 170 mm L
- Mounting:
- Wall mount or included DIN rail
