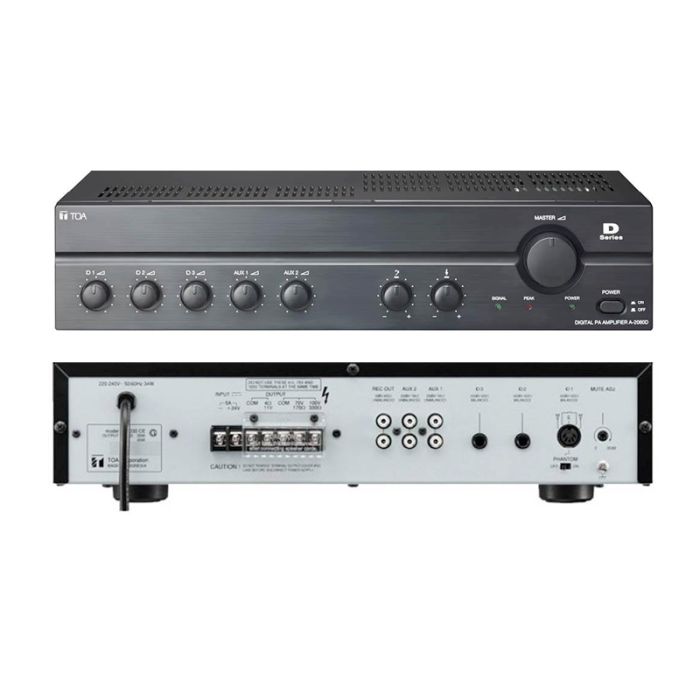

A2240D TOA A-2240D Digital PA Mixer Amplifier - 240 W 100 V Output
The TOA A-2240D is a 240 W digital PA mixer amplifier in the A-2000D Series. 240 W mixer amplifier with 220-240 V AC operation, balanced microphone inputs, AUX inputs, and a 100 V high-impedance speaker output.
Suitable for paging and background music systems. Features MIC 1 muting, tone controls, and front-panel status indicators.
Key Features
- 240 W rated output supports larger distributed speaker runs.
- Integrated mixer inputs handle common microphone and line source needs.
- 100 V high-impedance output supports installed PA loudspeaker distribution.
- MIC 1 muting helps announcements take priority over background audio.
- Front-panel monitoring and tone controls support straightforward system operation.
- Catalogue Family:
- AMPLIFIERS
- Product Type:
- AMPLIFIERS
- Power Source:
- 220-240 V AC, 50/60 HZ
- Rated Output:
- 240 W
- Power Consumption:
- 48 W AT 1/8 MAXIMUM OUTPUT WITHOUT CLIPPING
- Frequency Response:
- 50 HZ TO 20 KHZ, +/-3 DB
- Microphone Inputs:
- MIC 1-3: -60 DB, 600 OHM, BALANCED 3P XLR
- Aux Inputs:
- AUX 1-2: -20 dB, 10 kohm, unbalanced RCA pin jack
- Speaker Output:
- BALANCED FLOATING; HIGH IMPEDANCE 42 OHM (100 V)
- Phantom Power:
- DC +21 V on MIC 1
- Dimensions:
- 420 (W) x 100.6 (H) x 280.3 (D) mm
