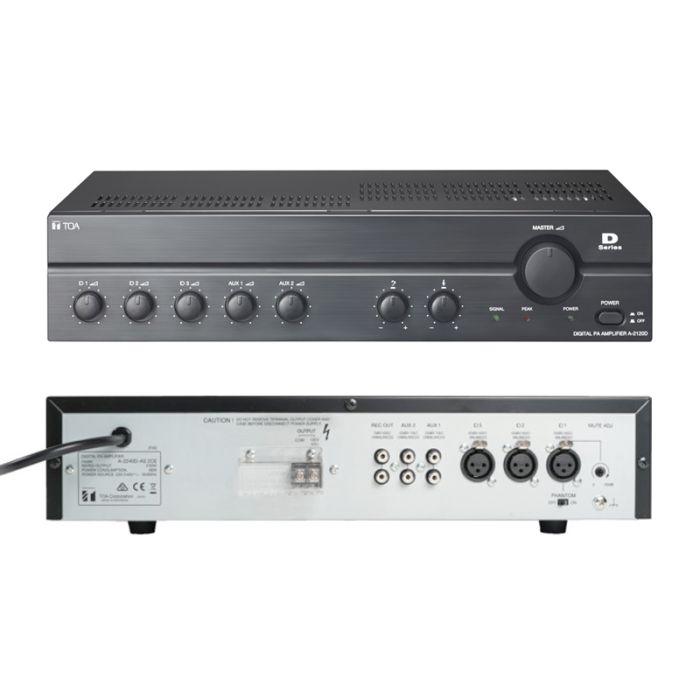

A2120D TOA A-2120D Digital PA Mixer Amplifier - 120 W 100 V Output
The TOA A-2120D is a 120 W digital PA mixer amplifier for paging and background music systems. The amplifier provides 220-240 V AC power, three balanced microphone inputs, two AUX inputs and a balanced 100 V speaker output.
It is suited to schools, offices, shops, factories, houses of worship and larger rooms where voice announcements and BGM need to share one amplifier. Phantom power, tone control and MIC 1 muting support practical day-to-day PA operation.
Key Features
- Supports paging and background music from multiple source inputs.
- 100 V speaker output suits distributed PA speaker installations.
- MIC 1 priority muting helps announcements cut through other audio sources.
- Bass and treble controls support practical on-site tonal adjustment.
- Front-panel indicators help users monitor power, signal and peak status.
- Catalogue Family:
- AMPLIFIERS
- Product Type:
- Amplifiers
- Power Source:
- 220-240 V AC, 50/60 Hz
- Rated Output:
- 120 W
- Power Consumption:
- 30 W at 1/8 maximum output without clipping
- Frequency Response:
- 50 Hz to 20 kHz, +/-3 dB
- Microphone Inputs:
- MIC 1-3: -60 dB, 600 ohm, balanced phone jack
- Aux Inputs:
- AUX 1-2: -20 dB, 10 kohm, unbalanced RCA pin jack
- Speaker Output:
- Balanced floating; high impedance 83 ohm (100 V)
- Phantom Power:
- DC +21 V on MIC 1
- Dimensions:
- 420 (W) x 100.6 (H) x 280.3 (D) mm
