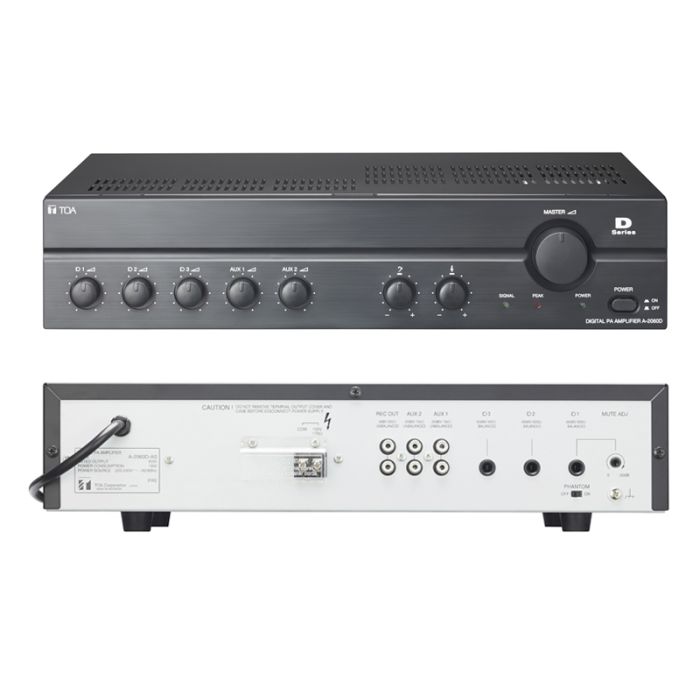

A2060D TOA A-2060D Digital PA Mixer Amplifier - 60 W 100 V Output
The TOA A-2060D is a 60 W A-2000D Series digital PA mixer amplifier. The amplifier provides 220-240 V AC operation, microphone and AUX input structure, 100 V high-impedance speaker output and a 60 W rated output.
It is suitable for paging and BGM systems requiring more output than the 30 W model while retaining the same simple mixer amplifier workflow. MIC 1 muting, phantom power and bass/treble controls support practical installed PA operation.
Key Features
- 60 W output suits small to medium distributed PA speaker systems.
- Multiple microphone and AUX inputs support common paging and music sources.
- 100 V speaker output supports high-impedance distributed audio lines.
- MIC 1 muting helps prioritise announcements over other programme sources.
- Tone controls and indicators support everyday operator adjustment and monitoring.
- Catalogue Family:
- AMPLIFIERS
- Product Type:
- Amplifiers
- Power Source:
- 220-240 V AC, 50/60 Hz
- Rated Output:
- 60 W
- Power Consumption:
- 16 W at 1/8 maximum output without clipping
- Frequency Response:
- 50 Hz to 20 kHz, +/-3 dB
- Microphone Inputs:
- MIC 1-3: -60 dB, 600 ohm, balanced phone jack
- Aux Inputs:
- AUX 1-2: -20 dB, 10 kohm, unbalanced RCA pin jack
- Speaker Output:
- Balanced floating; high impedance 170 ohm (100 V)
- Phantom Power:
- DC +21 V on MIC 1
- Dimensions:
- 420 (W) x 100.6 (H) x 280.3 (D) mm
