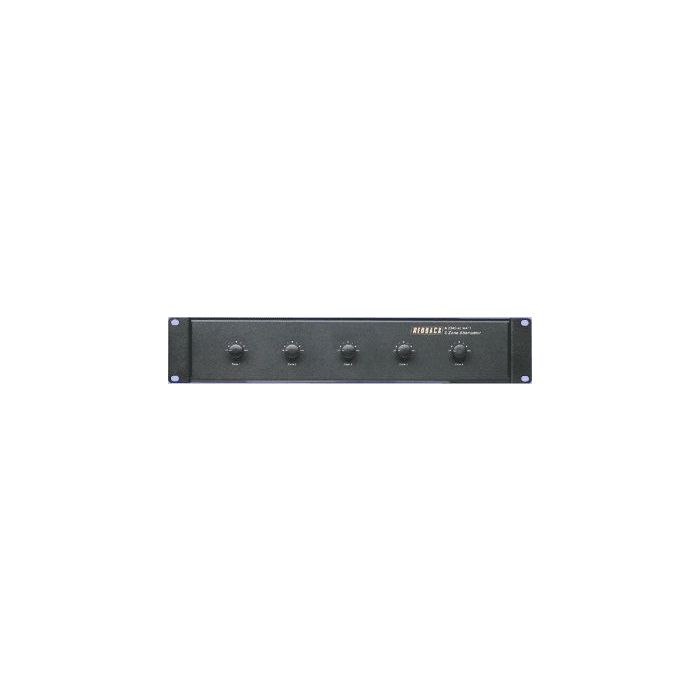

A2347 Redback 5 Zone 100V Line Attenuator Panel - 40W Per Zone
The A2347 is a Redback 5 zone attenuator panel for 100 V line speaker systems, configured for up to five zone inputs and five zone outputs. It provides 200 W total load capacity, 40 W per zone and relay override operation at 24 V DC in a rack-mount format.
It is intended for commercial audio installations where separate speaker zones need independent volume control and emergency or override bypass behaviour. Screw terminals, configurable input links and fail-safe relay options make it a practical panel for rack-based public address wiring.
Key Features
- Five independent zone controls help manage different speaker areas from one rack panel.
- Configurable input linking supports either a single source or separate zone feeds.
- Relay override operation allows volume settings to be bypassed when required by the system design.
- Rack-mount format keeps zone attenuation tidy in equipment cabinets.
- Screw terminals support clear termination during fixed audio installation work.
- Catalogue Family:
- AMPLIFIERS
- Model:
- A2347 override model
- System Type:
- 100 V line input only
- Zones:
- 5 zone outputs
- Input Configuration:
- Accepts 1 to 5 inputs
- Control Positions:
- 10 positions plus off / attenuation steps shown as 0, 5.7, 9.8, 16, 20 and 26.3 dB
- Power Rating:
- 200 W total, 40 W per zone
- Relay Override Operation Voltage:
- 24 V DC
- Dimensions:
- 484 W x 50 D x 88 H mm
- Rack Size:
- 2 RU, 19 inch rack mount
- Colour:
- Black
- Weight:
- Approx. 2.3 kg
- Product Type:
- Amplifiers
