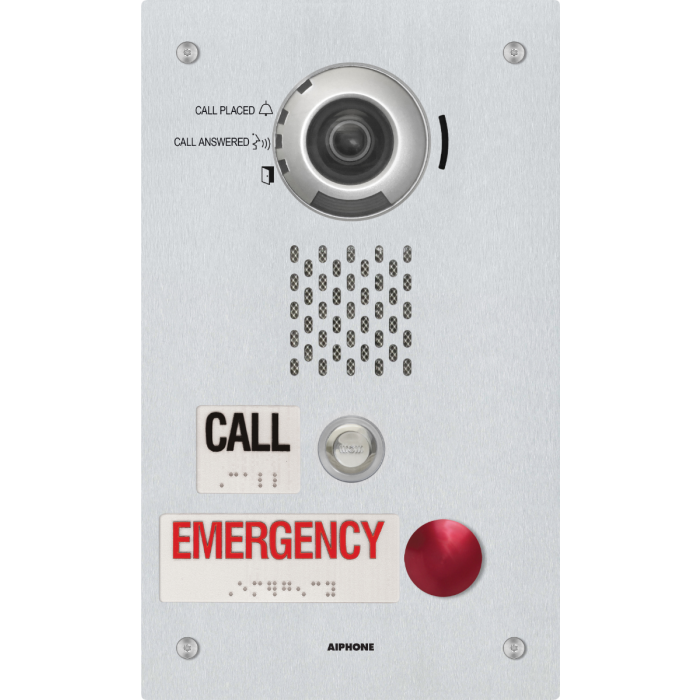

IX-DVF-2RA Aiphone IX Series Emergency IP Video Door Station - Flush Mount
The IX-DVF-2RA is a flush wall-mount Aiphone IX Series IP video door station with separate call and emergency call buttons. It combines hands-free automatic voice switching, a 1.2 megapixel colour CMOS camera, white low-light LED, speaker, microphone and Braille-labelled controls in a stainless steel front panel.
Designed for managed entrance and emergency communication points, the station supports PoE or 24V DC power, Cat-5e/6 network connection, ONVIF Profile S video viewing and audio/video recording to microSD. IP65 and IK08 ratings, programmable calling and status indication help it suit high-use access areas where clear call handling matters.
Key Features
- Separate call and emergency buttons support clearer visitor and assistance workflows.
- Braille-labelled controls improve usability at public-facing entry points.
- Flush mount stainless steel design provides a neat, robust doorway installation.
- Network video and recording functions help operators review and manage entrance activity.
- Weather and impact ratings support deployment in demanding external access locations.
- Catalogue Family:
- INTERCOM
- Model:
- IX-DVF-2RA
- Product Type:
- Intercom
- Mounting:
- Flush wall-mount
- Controls:
- Call button and emergency call button with Braille labelling
- Power Source:
- Power-over-Ethernet (IEEE 802.3af/at Class 0) or 24V DC external power supply
- Current Consumption:
- PoE standby 72 mA; PoE maximum 155 mA; 24V DC standby 130 mA; 24V DC maximum 300 mA
- Communication:
- Hands-free automatic voice switching
- Camera:
- 1/3-inch colour CMOS SXVGA 1280 x 960, approx. 1.2 megapixels
- Minimum Illumination:
- 5 lux
- LAN:
- Ethernet 10BASE-T/100BASE-TX, Auto MDI/MDI-X
- Audio Codec:
- G.711 (mu-law, A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption:
- TLS 1.0, TLS 1.1, TLS 1.2
- Packet Delivery:
- Unicast, multicast
- Called Stations:
- 20 stations
- Operating Temperature:
- -40 to +60 deg C (-40 to +140 deg F)
- Material:
- Stainless Steel
- Finish:
- Stainless steel front panel, vertical hair-line processed
- Dimensions:
- Front panel: 297 H x 178 W x 13 D mm; box: 267 H x 60 W x 63 D mm
- Weight:
- Unit approx. 1.5 kg (3.3 lbs); box approx. 860 g (1.9 lbs)
- Protection Ratings:
- IP65, IK08
- ONVIF:
- ONVIF Profile S support
