IX-DVF-RA Aiphone IX Series Emergency IP Video Call Station - Flush Mount

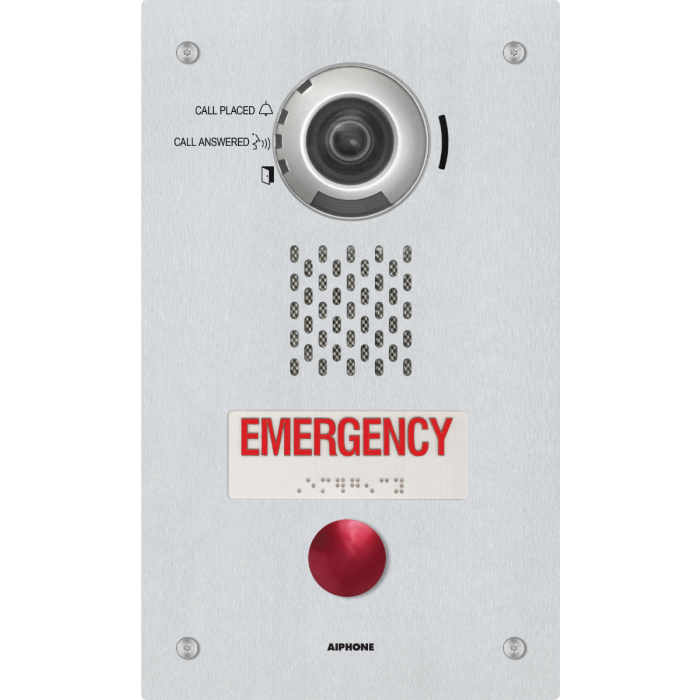

The IX-DVF-RA is a flush-mount Aiphone IX Series IP emergency video call station with a single emergency call button, raised lettering and Braille emergency placard, and built-in status indication for call progress. It combines a fixed 1.23 megapixel colour camera, microphone, speaker, SIP 2.0 support, and IP network connectivity for emergency communication points.
Designed for public assistance and rescue communication locations, the station uses a stainless steel faceplate with IP65 ingress protection and IK08 impact protection. It supports Cat-5e/6 network connection, PoE or 24V DC power, ONVIF Profile S or RTSP video streaming, microSD recording, programmable contact outputs, trigger inputs, and custom audio messages for site-specific response workflows.
Key Features
- Dedicated emergency call interface makes the station easy to identify at assistance points.
- Raised lettering and Braille signage support accessible operation without relying on screen prompts.
- Flush stainless steel construction suits public-facing locations that need a clean installed finish.
- Programmable I/O and custom audio messages help tailor the station to site response workflows.
- SIP and ONVIF support suits standards-based intercom and video-security environments.
- Catalogue Family:
- INTERCOM
- Model:
- IX-DVF-RA
- Product Type:
- Intercom
- Series:
- Aiphone IX Series
- Call Button:
- 1 emergency call button
- Signage:
- Raised lettering and Braille emergency placard
- Power Source:
- PoE (IEEE 802.3af Class 0) or 24V DC (PS-2420UL)
- Power Draw:
- 5.28 W
- Camera:
- 1/3 inch CMOS 1.23 megapixel fixed colour camera
- Minimum Illumination:
- 5 lux
- Camera Adjustment:
- +15 degrees, 0 degrees, or -8 degrees manual vertical adjustment
- Audio Codec:
- G.711 (u-law/A-law), G.722
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security:
- IEEE 802.1X
- Ul Listing:
- UL 62368-1; cUL 62368-1
- Operating Temperature:
- -40 deg C to 60 deg C (-40 deg F to 140 deg F)
- Ingress Protection:
- IP65
- Impact Protection:
- IK08
- Material:
- Stainless Steel
- Dimensions:
- 11-11/16 in H x 7 in W
