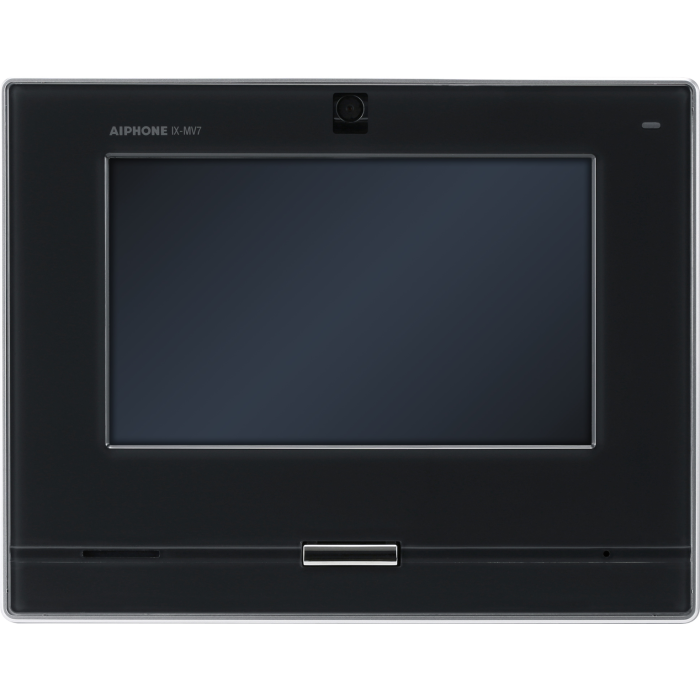

IX-MV7-B Aiphone IX Series 7 Inch Touchscreen Master Station - Black
The IX-MV7-B is a black Aiphone IX Series PoE master station with a 7 inch TFT colour touchscreen, built-in camera, microphone, speaker, and 10BASE-T/100BASE-TX Ethernet connection. It supports hands-free automatic voice switching with push-to-talk, H.264/AVC and Motion JPEG video, G.711 and G.722 audio, and an address book for up to 500 stations.
Suited to operator desks, reception points, and wall-mounted control locations, the station can be used on a desktop stand or wall-mounted with a 3-gang box. It supports door-station and network-camera monitoring, microSD audio and video recording, call transfer, auto answer, group paging, door unlocking during communication or monitoring, ONVIF Profile S support, and event-driven email notification within a configured IX system.
Key Features
- Clear local control point for answering calls, checking video, and managing IX Series station activity.
- Flexible desktop or wall mounting helps match the station to the operator position and room layout.
- Built-in transfer and auto-answer functions help route calls when staff availability or schedules change.
- Door-station and network-camera monitoring supports informed access decisions before communication or release.
- Contact inputs and relay outputs help connect the station with wider site response workflows.
- Catalogue Family:
- INTERCOM
- Model:
- IX-MV7-B
- Product Type:
- Intercom
- Display:
- 7 inch TFT colour LCD, WVGA 800 x 480, approx. 1,150,000 pixels
- Camera:
- 1/4 inch colour CMOS, VGA 640 x 480, approx. 300,000 pixels
- Power Source:
- Power-over-Ethernet (IEEE 802.3af Class 0)
- Current Consumption:
- Standby 66 mA, maximum 155 mA
- Communication:
- Hands-free automatic voice switching/PTT; handset full-duplex
- LAN:
- Ethernet (10BASE-T, 100BASE-TX)
- Audio Codec:
- G.711 (u-law/A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption Method:
- TLS1.0, TLS1.1, TLS1.2
- Packet Delivery:
- Unicast, multicast
- Address Book Capacity:
- 500 stations
- Ambient Temperature:
- 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Mounting:
- Desktop use with desktop stand or wall-mount
- Electrical Box:
- 3-gang box
- Material:
- Plastic
- Unit Colour:
- Flat black (N2 Munsell Approximation)
- Weight:
- 680 g approx.; 870 g approx. when used with desk stand
- Dimensions:
- 220 mm W x 172 mm H x 31.5 mm D
- Remarks:
- ONVIF Profile S support
