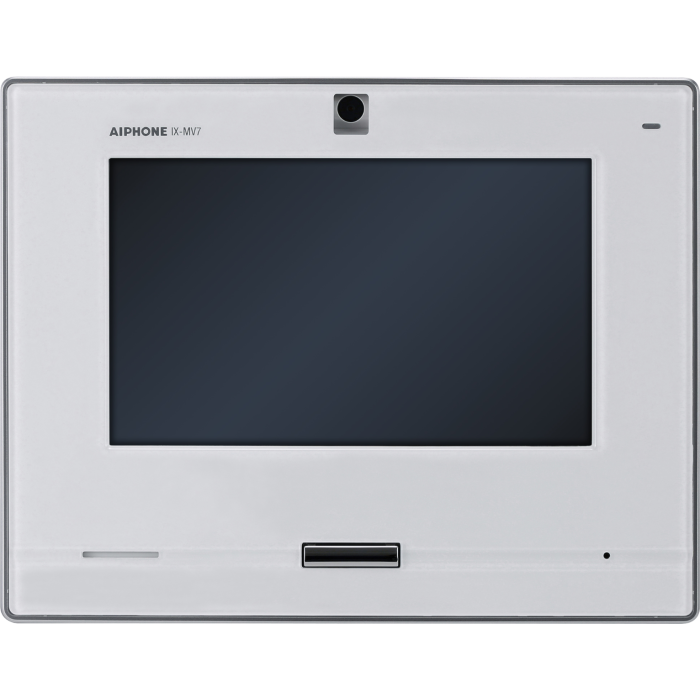

IX-MV7-W Aiphone IX Series 7 Inch Touchscreen Master Station - Snow White
The IX-MV7-W is a snow white Aiphone IX Series PoE master station with a 7 inch TFT colour touchscreen, built-in colour camera, microphone, speaker, microSD card slot, and 10BASE-T/100BASE-TX Ethernet connection. It supports hands-free automatic voice switching with push-to-talk, H.264/AVC and Motion JPEG video, G.711 and G.722 audio, and an address book for up to 500 stations.
Built for IX network intercom control points, the station can be used on a desktop with the desk stand or wall-mounted with a 3-gang box. It supports individual, group, and contact-input calling, door-station and network-camera monitoring, microSD audio/video recording, transfer workflows, group or all-station paging, electric-lock release during communication or monitoring, ONVIF event notifications, and scheduled messages.
Key Features
- Touchscreen master-station control helps operators manage calls, monitoring, and access actions from one IX network point.
- Large address book capacity supports structured communication across larger multi-station installations.
- Door-station and network-camera monitoring gives staff visual context before responding or releasing a lock.
- Transfer, auto-answer, and scheduled call handling options help keep responses organised across staffed locations.
- Event notification and recording functions support reviewable call activity and connected site workflows.
- Catalogue Family:
- INTERCOM
- Model:
- IX-MV7-W
- Product Type:
- Intercom
- Series:
- Aiphone IX Series
- Display:
- 7 inch TFT colour LCD, WVGA 800 x 480, approx. 1,150,000 pixels
- Camera:
- 1/4 inch colour CMOS, VGA 640 x 480, approx. 300,000 pixels
- Power Source:
- Power-over-Ethernet (IEEE 802.3af Class 0)
- Current Consumption:
- Standby 66 mA, maximum 155 mA
- Communication:
- Hands-free automatic voice switching/PTT; handset full-duplex
- LAN:
- Ethernet (10BASE-T, 100BASE-TX)
- Audio Codec:
- G.711 (u-law/A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption Method:
- TLS1.0, TLS1.1, TLS1.2
- Packet Delivery:
- Unicast, multicast
- Address Book Capacity:
- 500 stations
- Ambient Temperature:
- 0& deg C to 40 deg C (32 deg F to 104 deg F)
- Mounting:
- Desktop use with desktop stand or wall-mount
- Electrical Box:
- 3-gang box
- Material:
- Plastic
- Unit Colour:
- Snow white (5Y9.3/0.1 Munsell Approximation)
- Dimensions:
- 220 mm W x 172 mm H x 31.5 mm D
- Weight:
- 690 g approx.; 890 g approx. when used with desk stand
- Remarks:
- ONVIF Profile S support
