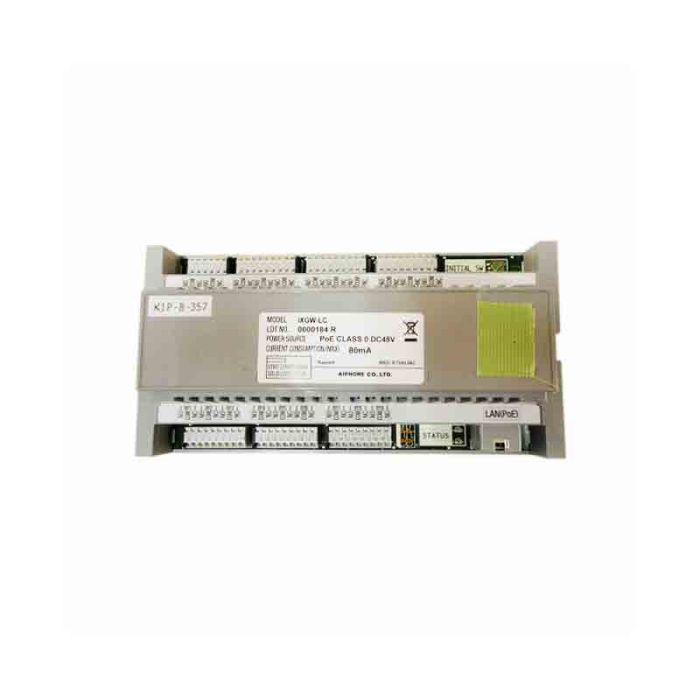

IXGW-LC Lift Control Adaptor
The Aiphone IXGW-LC is a lift control adaptor for IXG system installations. It enables compatible IXG tenant stations to interface with a supported lift controller, allowing lift call functionality within the IXG system.
Designed for wall mounting or wall-mounted DIN rail installation, the adaptor supports Power-over-Ethernet (PoE) for network connectivity and is housed in a self-extinguishing ABS resin enclosure. It is suitable for use in IXG installations requiring integrated lift control.
Key Features
- Enables lift control from compatible IXG tenant stations when used with a supported lift controller.
- Supports integration of lift control within IXG system installations.
- Power-over-Ethernet (PoE) provides network connectivity and power over a single Ethernet cable.
- Supports wall mounting or wall-mounted DIN rail installation (DIN rail sold separately).
- Supports up to 16 IXGW-LC adaptors per building.
- Catalogue Family:
- INTERCOM
- Model:
- IXGW-LC
- Product Type:
- Intercom
- System:
- IXG System
- Function:
- Enables lift control from compatible IXG tenant stations.
- Power Source:
- Power-over-Ethernet (IEEE 802.3af Class 0)
- Mounting:
- Wall-mounted or wall-mounted DIN rail installation (DIN rail sold separately)
- Material:
- Plastic
- Dimensions (H × W × D):
- 108.5 mm × 210 mm × 61 mm
- Maximum Quantity:
- Up to 16 adaptors per building
