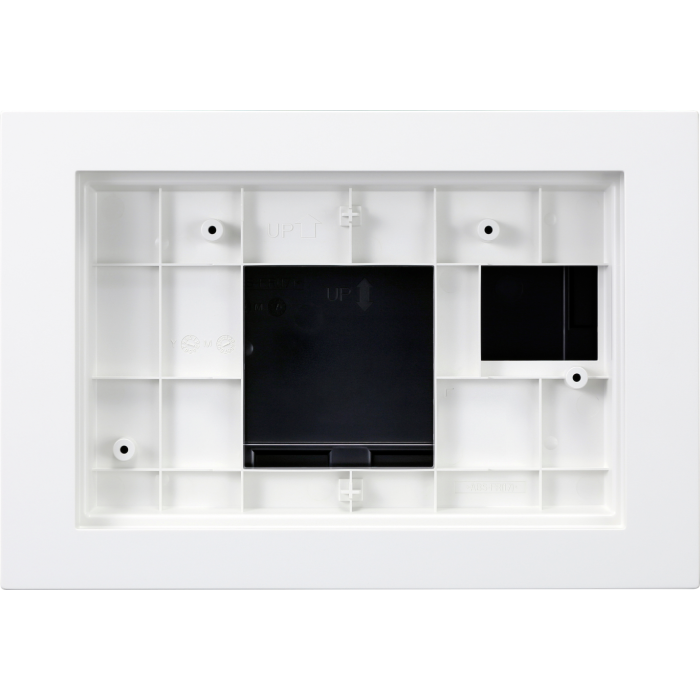

IXG-FMK-2C7 Flush Mount Kit for IXG-2C7 Tenant Station
The IXG-FMK-2C7 is an Aiphone flush mount kit designed for recessed installation of the IXG-2C7 and IXG-2C7-L tenant stations. It provides the components needed to create a clean, flush wall-mounted finish for compatible IXG tenant stations.
The kit includes a front panel, frame and matching back box to support a defined recessed installation. Its dimensions, white finish and purpose-built design make it suitable for planned rough-in and fit-off work where a neat flush-mounted presentation is required.
Key Features
- Supports a recessed in-wall installation for IXG-2C7 and IXG-2C7-L tenant stations.
- Includes a front panel, frame and matching back box for flush mounting.
- Defined cut-out and back box dimensions assist with installation planning.
- Provides a clean, flush wall-mounted finish for compatible tenant stations.
- White front panel and frame complement the appearance of the installed station.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Compatible Stations:
- IXG-2C7 and IXG-2C7-L
- Mounting:
- Flush wall-mounted
- Panel Material:
- Self-extinguishing resin
- Frame and Back Box Material:
- Self-extinguishing plastic
- Colours:
- Panel and frame: white; back box: black
- Panel and Frame Dimensions:
- 290 mm (W) × 199 mm (H) × 30 mm (D)
- Back Box Dimensions:
- 265 mm (W) × 169 mm (H) × 40 mm (D)
- Mass:
- Panel and frame: approx. 110 g; back box: approx. 220 g
- Recommended Mounting Height:
- Centre of back box: 1500 mm
- Included Accessories:
- Installation manual ×1; frame-mounting screws ×4; wall-mounting screws ×4
