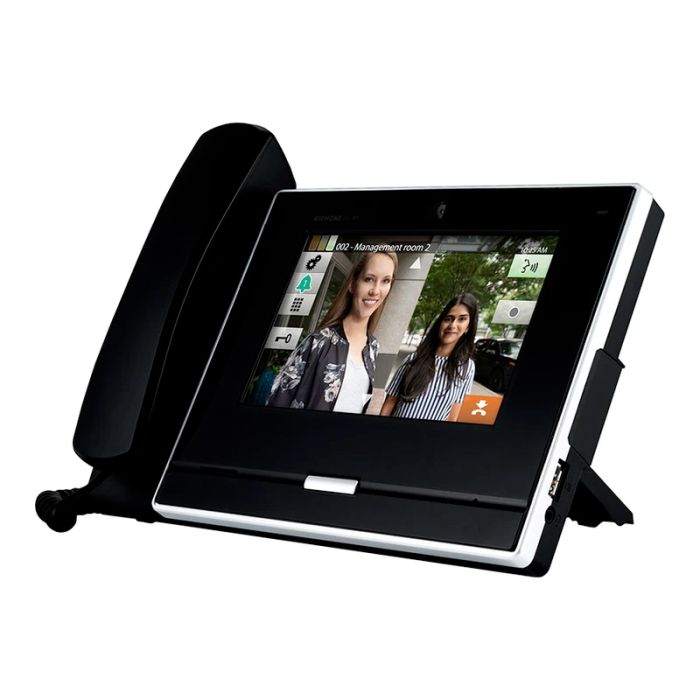

IXG-MK IP Video Guard Station with 7 Inch Touchscreen
The IXG-MK is an Aiphone IP video guard station for the IXG Series multi-tenant system. It combines a 7 inch LCD TFT touchscreen, built-in colour video camera with privacy shutter, handset, microphone and speaker so a guard unit can answer calls from entrance stations, tenant stations and individual door stations.
For concierge and security desks, the station supports hands-free voice operation or full-duplex handset communication, door release from the key button, call history and a large address book. It can view ONVIF Profile S cameras and record calls to a microSD card, while the included multi-angled desk stand and wall-mount option support flexible placement.
Key Features
- Centralises guard-desk call handling across entrance, tenant and individual door stations.
- Helps staff respond to visitors with touchscreen operation, handset audio and hands-free communication options.
- Door release control supports access management during active station calls.
- ONVIF Profile S camera viewing broadens situational awareness within supported IXG/IP video setups.
- Desk stand angle choices and wall-mount support make placement easier for reception or guard-centre layouts.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- System:
- IXG Series multi-tenant system
- Guard Unit Capacity:
- Up to 8 IXG-MK stations per guard unit
- Power Source:
- PoE; IEEE 802.3af Class 0
- Power Consumption:
- 3.2 W standby; 7.4 W max
- Screen:
- 7 inch LCD TFT touchscreen
- Monitor Resolution:
- 800 x 400
- Camera:
- Colour video camera with privacy shutter
- Communication:
- Hands-free voice operation, push-to-talk, or full-duplex handset communication
- Address Book:
- Up to 9,999 units
- Camera Viewing:
- View ONVIF Profile S cameras
- Recording Media:
- microSD card slot for call recording; card not provided by Aiphone
- Contact I/O:
- 2 contact outputs; 4 trigger inputs
- Speaker Output:
- 8 ohm 0.5 W
- Audio Input:
- 600 ohm
- Audio Codec:
- G.711 (mu-law, A-law)
- Video Codec:
- H.264, MJPEG
- Network Protocols:
- IPv4/v6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP/RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS, TLS
- Encryption:
- TLS 1.0, 1.1, 1.2
- Operating Temperature:
- 32 to 104 deg F (0 to 40 deg C)
- Mounting:
- Desktop use with included multi-angled stand or wall-mount
- Desk Stand Angles:
- 30, 45 and 60 degrees
- Material:
- Plastic
- Dimensions:
- 8-1/16 in H x 11 in W x 2-3/16 in D
