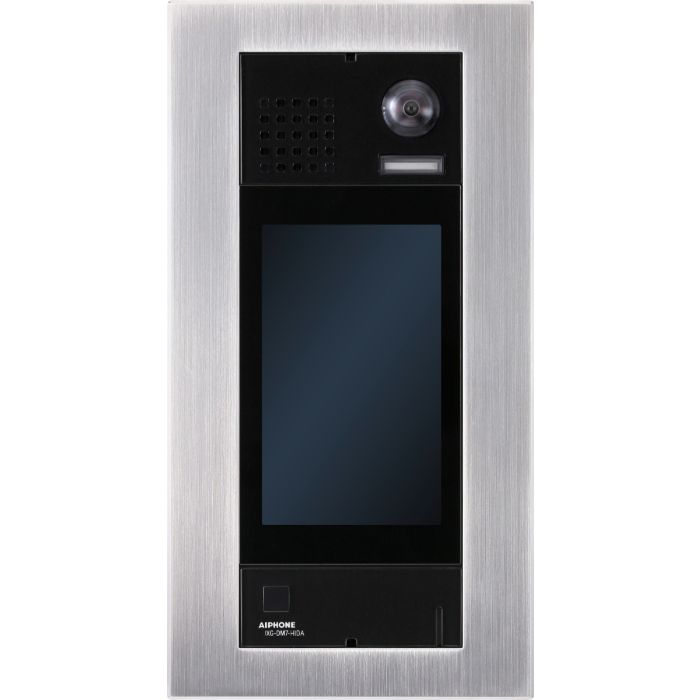

IXG-DM7-HIDA IP Video Entrance Station with HID Card Reader
The IXG-DM7-HIDA is an Aiphone IXG Series IP video entrance station with a 7 inch LCD directory screen, 720p HD camera, hands-free audio and a built-in HID card reader. It is designed for calling tenants, entering access codes and supporting card access from the entry point, with up to 9,999 stored names or numbers.
For multi-tenant buildings, mixed-use sites and controlled entrances, the station gives visitors a clear touchscreen directory while allowing tenants to view calls on a tenant station or app. Motion activation, T-coil support, stainless steel panel construction and IP65/IK08 ratings make it a practical choice where entry communication, access control and exposed-door operation need to work together.
Key Features
- Combines visitor video calling, tenant directory lookup and access-code entry in one entrance station.
- Built-in HID card reader supports credential-based entry alongside front-door communication.
- Motion-activated screen helps visitors start interaction naturally when they approach the panel.
- T-coil support and hands-free audio help make entrance communication clearer for a wider range of users.
- Rated stainless steel panel is suited to demanding entry points where presentation and protection matter.
- Catalogue Family:
- INTERCOM
- Model:
- IXG-DM7-HIDA
- Product Type:
- Intercom
- Series:
- IXG Series
- Power Source:
- PoE (IEEE 802.3af class 0)
- Power Draw:
- 5.3 W standby, 11.6 W max
- Screen:
- 7″ TFT display
- Monitor Resolution:
- 800 x 400
- Camera:
- 1.23 megapixel fixed video camera
- Communication:
- Full-duplex
- Audio Codec:
- G.711 (u-law, A-law)
- Video Codec:
- H.264
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS, TLS
- Port Security:
- IEEE 802.1X
- Operating Temperature:
- -22degree to 140degree (-30 deg C to 60 deg C)
- Dimensions:
- 13-11/16″ H x 7-3/16″ W x 2″ D
- Hid Card Types:
- High Frequency (13.56 MHz): HID iClass, SEOS, HID iClass SR, HID iClass SE, HID MIFARE Classic, HID Mifare DES Fire EV1; Low Frequency (125 kHz): HID Proximity, Indala Proximity
- Card Formats:
- H10301 (26-bit Wiegand); H10302/H10304 (37-bit Wiegand); 35-bit/48-bit Corporate 1000
- Panel:
- Stainless steel panel
- Ratings:
- IP65 and IK08
