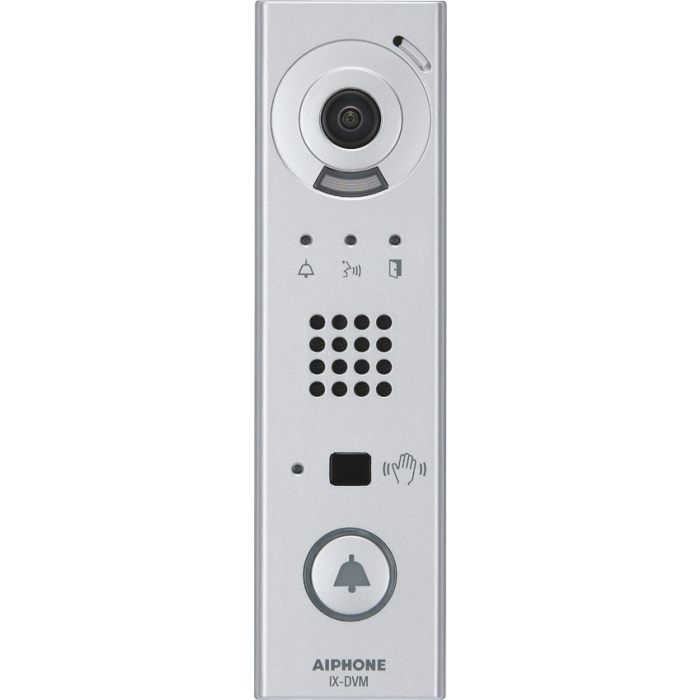

IX-DVM Aiphone IX Series Mullion Mount IP Video Door Station
The IX-DVM is an Aiphone IX Series mullion-mount IP video door station built for narrow-frame entry installations. It connects over Cat-5e/6 using PoE, includes a contactless call sensor and uses a 720p HD wide dynamic range fixed colour camera with an approximately 170-degree horizontal camera angle.
It suits networked access points where a compact vandal-resistant station is required on a mullion or slim entry frame. SIP support, ONVIF Profile S or RTSP video streaming, microSD card capture capability, one relay output and one trigger input help the station integrate with door release, call handling and video security workflows.
Key Features
- Mullion-mount form factor suits narrow entry frames where space is limited.
- Contactless call sensing supports touchless visitor interaction at the door station.
- Wide dynamic range video helps maintain usable visitor images across changing light conditions.
- SIP and ONVIF Profile S support make the station useful in networked intercom and video systems.
- Relay and trigger I/O support door release and call-event handling from one compact unit.
- Catalogue Family:
- INTERCOM
- Model:
- IX-DVM
- Product Type:
- Intercom
- Power Source:
- PoE, IEEE 802.3af Class 0
- Power Draw:
- 4.6 W max.
- Camera:
- 720p HD, wide dynamic range fixed colour camera
- Camera Angle:
- Approx. 170degree horizontal
- Call Sensor:
- Contactless call sensor with Class 1 laser
- Relay Output:
- Form C dry contact, N/O or N/C
- Contact Rating:
- 24V AC, 1A or 24V DC, 1A resistive load
- Audio Codec:
- G.711 (u-law, A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security:
- IEEE 802.1X
- Operating Temperature:
- -40 to +60 deg C (-40 to +140degree)
- Protection:
- IP54, IK07
- Dimensions:
- 1-7/8 in W x 1-5/16 in L x 6-7/8 in H
- Video Streaming:
- ONVIF Profile S or RTSP
- Card Slot:
- microSD card slot
- Compliance Reference:
- Trade Agreements Act (TAA) compliant
- Manufacturing Origin:
- Manufactured in Japan
