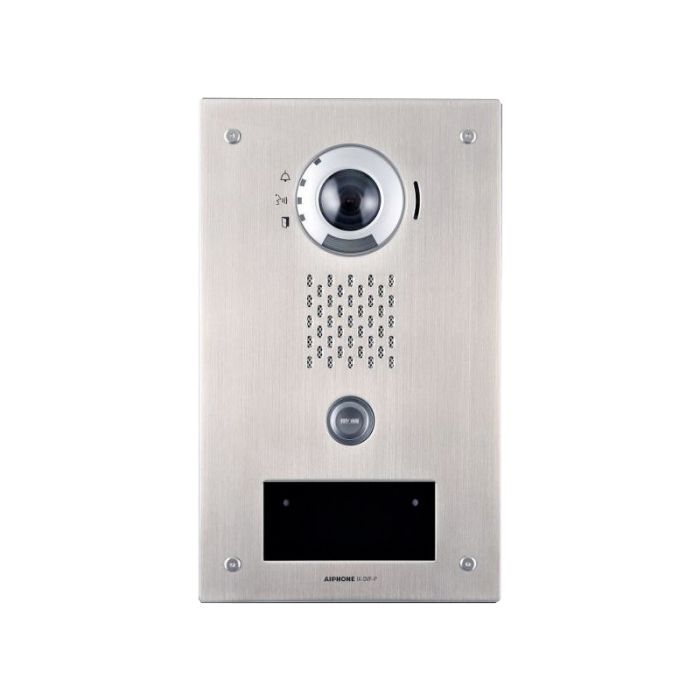

IX-DVF-P Aiphone IX Series IP Video Door Station with HID Reader Slot - Flush Mount
The IX-DVF-P is a flush wall-mount Aiphone IX Series IP video door station with a stainless steel front panel and a slot for an HID reader. It provides hands-free automatic voice switching, a 1.2 megapixel colour CMOS camera, white low-light LED, speaker, microphone and call button for networked entrance communication.
Built for installations that need video intercom and reader integration space in one front plate, the station supports PoE or 24V DC power, Cat-5e/6 network connection, ONVIF Profile S video viewing and microSD audio/video recording. Its flush format and stainless steel finish help create a clean access-control doorway presentation.
Key Features
- Integrated HID reader slot supports a combined intercom and access-control station layout.
- Flush mount format helps achieve a tidy recessed doorway installation.
- Networked camera and audio functions support practical visitor screening at entry points.
- Stainless steel front panel suits a clean, professional access-control finish.
- Recording, event messaging and programmable call functions assist managed site workflows.
- Catalogue Family:
- INTERCOM
- Model:
- IX-DVF-P
- Product Type:
- Intercom
- Mounting:
- Flush wall-mount
- Reader Provision:
- Slot for HID reader
- Power Source:
- Power-over-Ethernet (IEEE 802.3af/at Class 0) or 24V DC external power supply
- Current Consumption:
- PoE standby 72 mA; PoE maximum 155 mA; 24V DC standby 130 mA; 24V DC maximum 300 mA
- Communication:
- Hands-free automatic voice switching
- Camera:
- 1/3-inch colour CMOS SXVGA 1280 x 960, approx. 1.2 megapixels
- Minimum Illumination:
- 5 lux
- LAN:
- Ethernet 10BASE-T/100BASE-TX, Auto MDI/MDI-X
- Audio Codec:
- G.711 (mu-law, A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption:
- TLS 1.0, TLS 1.1, TLS 1.2
- Packet Delivery:
- Unicast, multicast
- Called Stations:
- 20 stations
- Operating Temperature:
- -40 to +60 deg C (-40 to +140 deg F)
- Material:
- Stainless Steel
- Finish:
- Stainless steel front panel, vertical hair-line processed
- Dimensions:
- Front panel: 297 H x 178 W x 10 D mm; box: 267 H x 60 W x 60 D mm
- Weight:
- Unit approx. 1.4 kg (3.1 lbs); box approx. 860 g (1.9 lbs)
- ONVIF:
- ONVIF Profile S support
