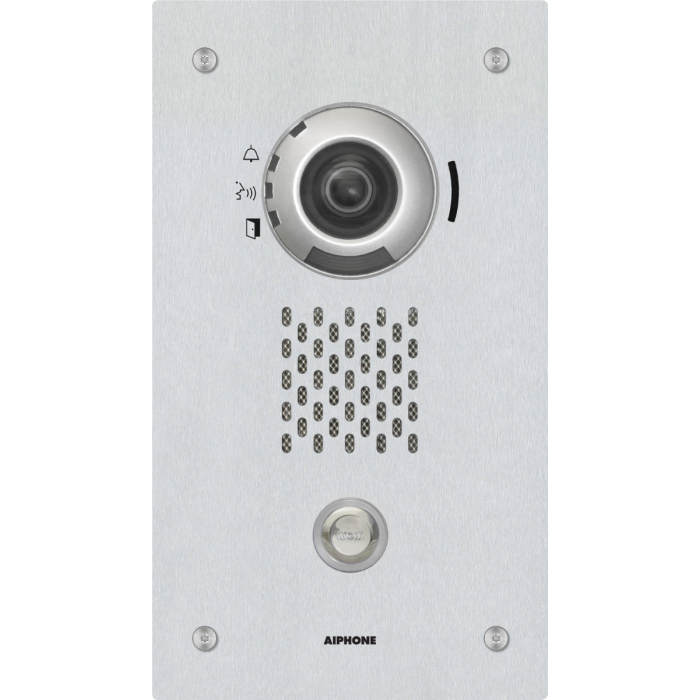

IX-DVF Aiphone IX Series Vandal Resistant IP Video Door Station - Flush Mount
The IX-DVF is a flush wall-mount Aiphone IX Series IP video door station with a stainless steel front panel and dedicated back box. It provides hands-free automatic voice switching, a 1.23 megapixel fixed colour CMOS camera, white low-light LED and network connectivity for Cat-5e/6 IX Series installations.
Built for vandal resistant and weather resistant entrance use, the IX-DVF carries IP65 and IK08 protection ratings and supports PoE or 24V DC power. SIP 2.0, ONVIF Profile S, microSD audio/video recording, programmable calls and visual status indicators give specifiers a robust flush-mounted doorway station for managed intercom systems.
Key Features
- Flush mount design delivers a cleaner doorway finish for recessed station installations.
- Stainless steel faceplate supports a neat presentation at high-use entry points.
- IP65 and IK08 ratings suit demanding entrance environments where weather and impact resistance matter.
- Integrated camera, microphone, speaker and indicators consolidate visitor communication at the door.
- IX Series network functions support group calls, ONVIF video viewing and recorded entry events.
- Catalogue Family:
- INTERCOM
- Model:
- IX-DVF
- Product Type:
- Intercom
- Mounting:
- Flush wall-mount
- Power Source:
- Power-over-Ethernet (IEEE 802.3af/at Class 0) or 24V DC external power supply
- Current Consumption:
- PoE standby 72 mA; PoE maximum 155 mA; 24V DC standby 130 mA; 24V DC maximum 300 mA
- Communication:
- Hands-free automatic voice switching
- Camera:
- 1/3-inch colour CMOS SXVGA 1280 x 960, approx. 1.2 megapixels
- Minimum Illumination:
- 5 lux
- LAN:
- Ethernet 10BASE-T/100BASE-TX, Auto MDI/MDI-X
- Audio Codec:
- G.711 (mu-law, A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Protocols:
- IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Encryption:
- TLS 1.0, TLS 1.1, TLS 1.2
- Called Stations:
- 20 stations
- Operating Temperature:
- -40 to +60 deg C (-40 to +140 deg F)
- Material:
- Stainless Steel
- Finish:
- Stainless steel front panel, vertical hair-line processed
- Dimensions:
- Front panel: 265 H x 150 W x 10 D mm; box: 235 H x 60 W x 60 D mm
- Weight:
- Unit approx. 1.2 kg (2.7 lbs); box approx. 690 g (1.53 lbs)
- Protection Ratings:
- IP65, IK08
- ONVIF:
- ONVIF Profile S support
