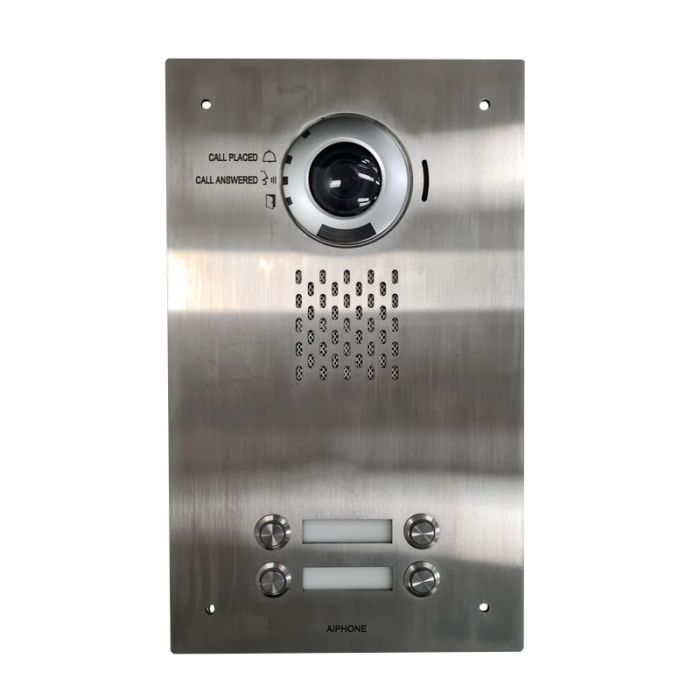

IX-4DVF Aiphone IX Series IP Video Door Station - 4 Button Flush Mount
The IX-4DVF is an Aiphone IX Series IP video door station with a four-button flush-mount front panel for multi-call entry applications. It supports Power-over-Ethernet or 24V DC operation, hands-free automatic voice switching, a 1/3 in colour CMOS SXVGA camera and a marine-grade stainless steel front panel.
It suits networked access points where visitors need clear video communication and multiple call destinations from one door station. The unit supports Ethernet networking, H.264/AVC and Motion JPEG video, contact inputs and relay outputs, IP65 ingress protection, IK08 impact rating and ONVIF Profile S support for security-system integration.
Key Features
- Four-button layout supports multiple call destinations from a single entrance station.
- Marine-grade stainless steel front panel suits demanding flush-mounted entry points.
- PoE or 24V DC powering gives installers flexibility across network and local-supply designs.
- Wide protocol and codec support helps the station fit into IP intercom and security workflows.
- Weather and impact ratings support reliable placement at exposed visitor access points.
- Catalogue Family:
- INTERCOM
- Model:
- IX-4DVF
- Product Type:
- Intercom
- Power Source:
- Power-over-Ethernet IEEE 802.3af/at Class 0 or 24V DC external power supply
- Communication:
- Hands-free automatic voice switching
- Camera:
- 1/3 in colour CMOS SXVGA 1280 x 960, approx. 1,200,000 pixels
- Minimum Illumination:
- 5 lux
- LAN:
- Ethernet 10BASE-T / 100BASE-TX, MDI Auto MDI/MDI-X
- Audio Codec:
- G.711 (u-law, A-law), G.722
- Video Codec:
- H.264/AVC, Motion JPEG
- Number of Called Stations:
- 20 stations
- Operating Temperature:
- -40 to +60 deg C (-40 to +140degree)
- Mounting:
- Flush wall-mount
- Material:
- Stainless Steel
- Finish:
- Stainless steel, vertical hair-line processed
- Weight:
- Approx. 1.5 kg
- IP Rating:
- IP65
- IK Rating:
- IK08
- ONVIF Support:
- ONVIF Profile S support
- Relay Outputs:
- 2 Form C dry contact outputs, N/O or N/C
- Contact Inputs:
- 6 contact inputs
- Front Panel Dimensions:
- 297 mm H x 178 mm W
