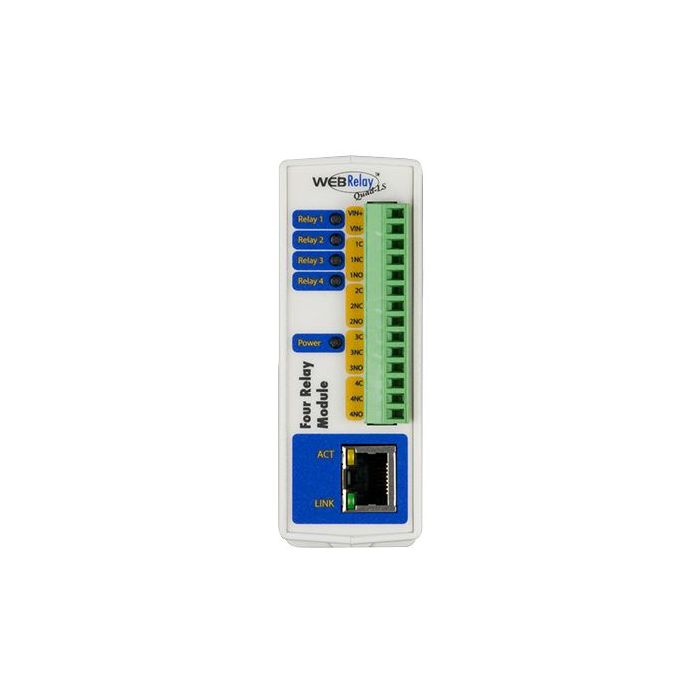

IPRELAY4 WebRelay-Quad Four Relay IP Module
The IPRELAY4 is a four-relay IP module with a built-in web server and 10/100Base-T Ethernet connectivity. It provides four relay outputs that can be controlled using a web browser, XML commands or Modbus/TCP.
Designed for lift control, automation and remote switching applications, the module supports DIN-rail or wall mounting and features SPDT Form C relay outputs with removable terminal connections.
Key Features
- Four relay outputs provide remote switching for multiple devices from a single module.
- Built-in web server enables browser-based relay control and configuration.
- Supports Modbus/TCP and XML commands for integration with compatible automation systems.
- DIN-rail or wall mounting provides flexible installation options.
- 10/100Base-T Ethernet interface supports IP network connectivity.
- Catalogue Family:
- ACCESSORIES
- Product Type:
- Accessories
- Model:
- WebRelay-Quad X-WR-4R3-I (non-PoE)
- I/O:
- 4 relays
- Relay Contact Form:
- SPDT Form C dry contacts
- Maximum Relay Voltage:
- 28 V
- Maximum Relay Current:
- 3 A
- Network:
- 10/100Base-T Ethernet
- Power Requirement:
- 9-28 V DC for X-WR-4R3-I
- Connectors:
- 14-position removable terminal strip and RJ45
- Operating Temperature:
- -40 deg C to 65.5 deg C
- Dimensions:
- 35.7 mm W x 98.5 mm H x 78.0 mm D
- Weight:
- 128 g
