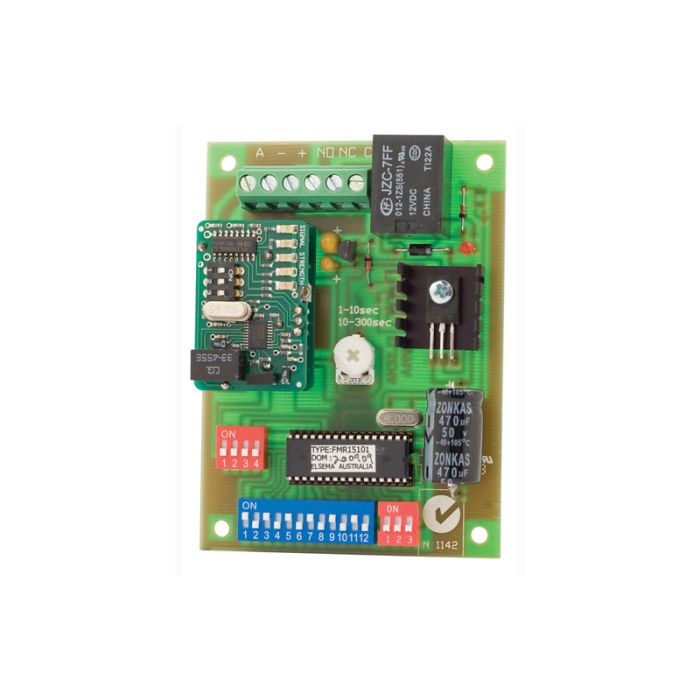

FMR15101 Elsema 151 MHz Receiver with Relay Output - 1 Channel
The FMR15101 is a 1 channel 151 MHz receiver with relay output and a 151 MHz radio receiver with 12-24 VAC/DC operation, selectable frequencies, signal strength indication, and selectable output modes including momentary, latching, timed, and security latching.
Suitable for pump control, long-distance panic buttons, agricultural control, security alarm, and telemetry applications. Compatible with FMT151 Series transmitters and supports long-range line-of-sight operation with suitable antenna installation.
Key Features
- Single relay output supports straightforward remote switching applications.
- Selectable output modes allow the receiver response to match the control task.
- Signal strength LEDs assist antenna positioning and commissioning.
- 151 MHz narrow-band receiver design supports long-range Elsema radio systems.
- Compatibility with FMT151 transmitters keeps transmitter pairing within the family.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Product Type:
- Transmitters & Receivers
- Supply Voltage:
- 12 to 24 V AC or DC
- Current Consumption:
- 24 mA standby at 12 V DC; 57 mA relay on at 12 V DC
- Receiving Frequency:
- 151.6 MHz with 8 selectable frequencies
- Operating Temperature:
- -5 to 50 degrees C
- Outputs:
- One changeover relay output rated 8 A at 240 V AC
- Dimensions:
- 95 x 70 x 30 mm
- Usable Operating Range:
- Up to 5000 m depending on installation and antenna
