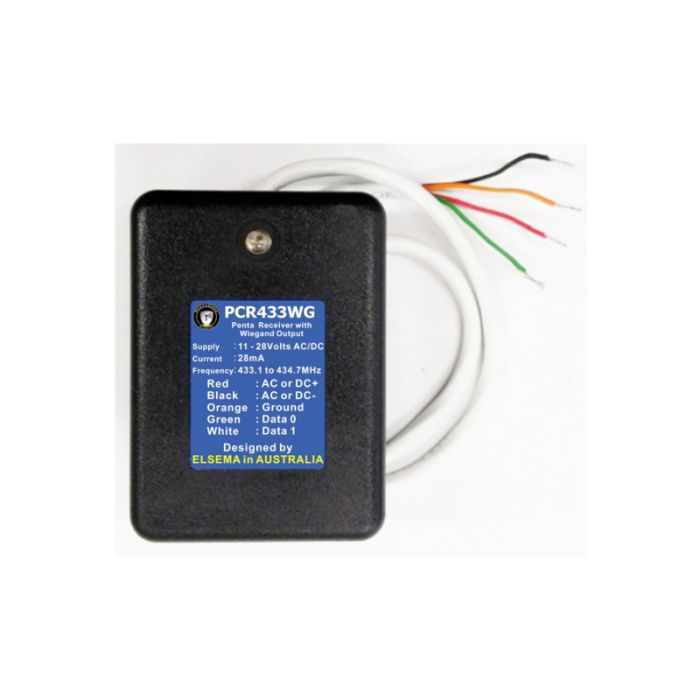

PCR433WG 433 MHz Penta Receiver With Wiegand Output
The PCR433WG is an Elsema 433 MHz Penta receiver with Wiegand output for adding wireless remote-control input to compatible access-control panels. It operates from 12 to 24 V AC or DC, uses PentaCODE remotes, and provides a 26-bit Wiegand format with other formats available on request.
The receiver lets remotes be enrolled into an access-control system in a similar way to cards or RFID tags, with site code and button selection handled through dipswitch settings. A compact pre-wired enclosure, status LED and stated operating range up to 200 metres support practical gate, door and boom-gate applications.
Key Features
- Wiegand output helps add wireless remote access without changing the access-control software workflow.
- Remote enrolment can follow familiar card-style programming for simpler system administration.
- Dipswitch site-code and button selection support controlled setup for multi-button PentaCODE remotes.
- Compact pre-wired enclosure assists installation into access-control environments.
- Status LED indication helps distinguish power-ready and received-transmission states during checks.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Supply Voltage:
- 12 to 24 V AC or DC
- Standby Current:
- 28 mA at 24 V DC
- Wiegand Format:
- 26 bits with other formats available on request
- Frequency Band:
- 433.100 to 434.700 MHz
- Operating Temperature:
- -5 to 50 deg C
- Receiver Sensitivity:
- 0.316 uV (-117 dBm)
- Connections:
- 50 cm flying leads for supply and Wiegand output
- Dimensions:
- 70 x 55 x 25 mm
- Weight:
- 70 g
- Operating Range:
- Up to 200 metres depending on building structure and receiver antenna
- Usable Transmitters:
- PCK series PentaCODE remotes
- Product Type:
- Transmitters & Receivers
