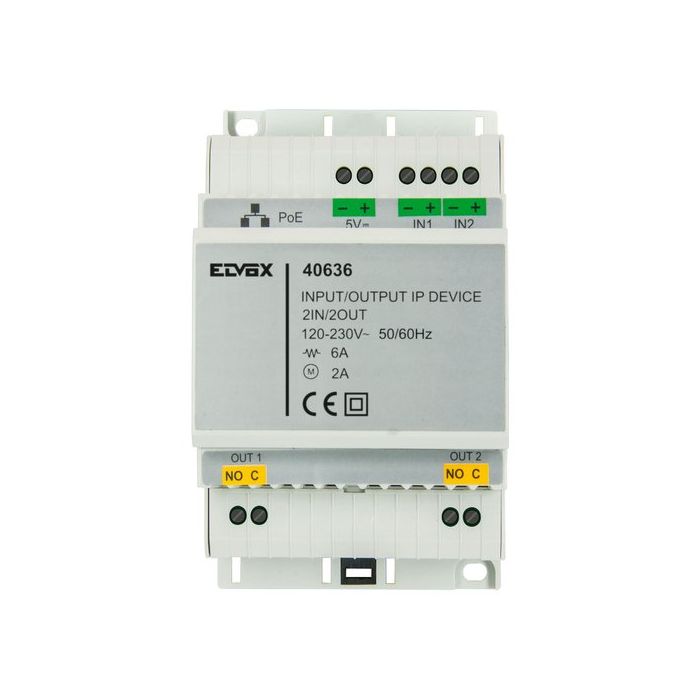

40636 IP Device with 2 Inputs and 2 Relay Outputs
40636 is an IP I/O module for Vimar Elvox video door entry systems with two programmable inputs, two relay outputs, RJ45 Ethernet connection, and PoE or 5 VDC auxiliary power.
Suitable for IP door entry installations requiring programmable input monitoring and relay control for functions such as door release, system actuation, and door status signalling. Features relay outputs rated within the load specifications.
Key Features
- Two programmable inputs support door-entry signalling or control logic.
- Two relay outputs provide actuation points for approved loads.
- RJ45 network connection suits IP video-door entry system integration.
- PoE or 5 V DC auxiliary power gives installers two supply options.
- DIN module format supports organised placement in junction boxes with rail.
- Catalogue Family:
- INTERCOM
- Product Type:
- Intercom
- Network Interface:
- RJ45 Ethernet 10/100 Mbps, PoE class 0
- Auxiliary Power:
- 5 V DC, maximum consumption 300 mA
- Inputs:
- 2 opto-isolated 2-pole inputs for dry contacts or magnetic sensors
- Relay Outputs:
- 2 two-pole relay outputs
- Dissipated Power:
- 3 W
- Operating Temperature:
- -5 deg C to +35 deg C
- Protection Degree:
- IP30
- Din Modules:
- 4 x 17.5 mm
- Resistive Load Rating:
- 6 A
- LED Lamp Load Rating:
- 100 W
