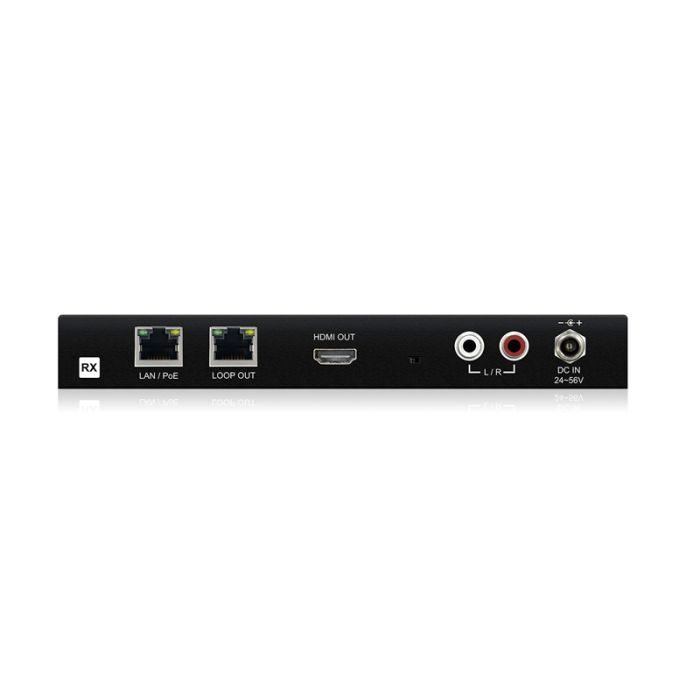

IP200UHD-RX Multicast HDMI over IP Receiver
The IP200UHD-RX is the receiver unit in Blustream's UHD Multicast HDMI over IP platform. It receives HDMI over a 1Gb network architecture and supports visually lossless, low-latency video distribution with advanced routing of IR, RS-232, USB/KVM, audio and video.
The receiver is suited to commercial and residential multicast systems requiring matrix distribution, video wall, one-to-one extender or one-to-many extender modes. PoE support from a suitable network switch and a LAN loop-out help simplify receiver placement in distributed AV networks.
Key Features
- Receives UHD multicast video over standard 1Gb network infrastructure.
- Video scaling helps adapt distributed content to connected display requirements.
- USB/KVM and control routing support more complete endpoint integration.
- PoE operation can reduce local power needs at receiver locations.
- Multiple operating modes support matrix, video wall and extender-style designs.
- Catalogue Family:
- NETWORK SWITCH
- Model:
- IP200UHD-RX
- Product Type:
- Network Switch
- Video Input:
- 1 x LAN RJ45
- Video Output:
- 1 x HDMI Type A
- Video Support:
- Up to 4K 30Hz UHD output
- Transmission Distance:
- HDMI up to 100 m over a single CAT cable
- USB/KVM:
- 2 x USB Type-A
- Audio Output:
- 2 x RCA L/R analogue audio
- Dimensions:
- 190 x 114 x 25 mm
- Power:
- PoE or local 24-56 V power supply sold separately
