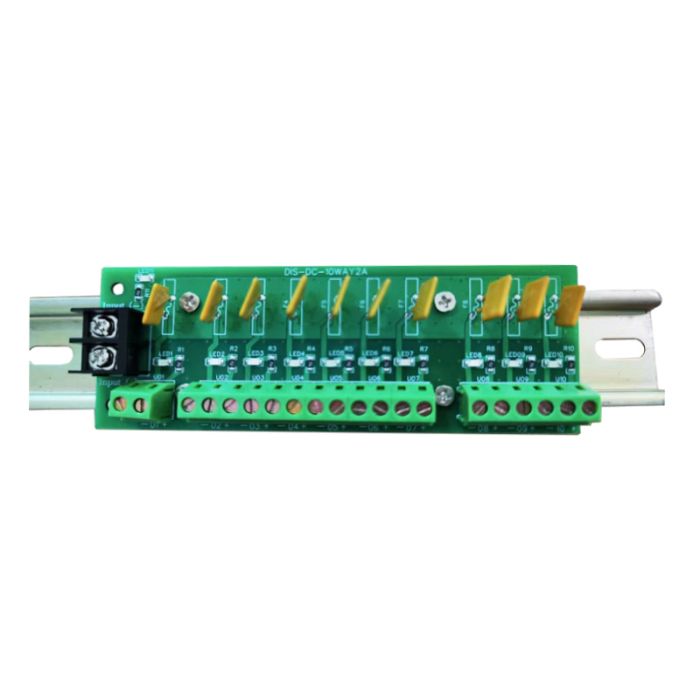

DC10WAY2A 10 Way Power Distribution Board - 20A
The DC10WAY2A is a DIS-DC-10WAY2A 10-way power distribution board with a 20A standard power current rating. It provides ten self-healing fused outputs rated at 2A each, output LED indicators and support for DC/AC low-voltage input.
The board is suited to installers who need compact protected distribution without replacing individual fuses after a trip event. DIN rail or tape mounting options make it adaptable for enclosure builds, retrofit panels and low-voltage control equipment.
Key Features
- Provides a compact way to split low-voltage power across ten circuits.
- Self-healing output protection helps reduce routine fuse replacement.
- Supports fast visual checks through output LED indication.
- Offers flexible mounting for DIN rail or adhesive-backed installation.
- Helps keep small control enclosures tidy while maintaining circuit protection.
- Catalogue Family:
- POWER SUPPLY
- Model:
- DIS-DC-10WAY2A
- Input Voltage Range:
- 0-28V DC/AC
- Max Standard Power Current:
- 20A
- Max Constant Current per Output:
- 2A
- Outputs:
- 10
- Fuse:
- 2A self-healing PTC
- Mounting:
- DIN rail or tape
- Dimensions (H X W X D):
- 15 x 127 x 45mm
- Product Type:
- Power Supply
