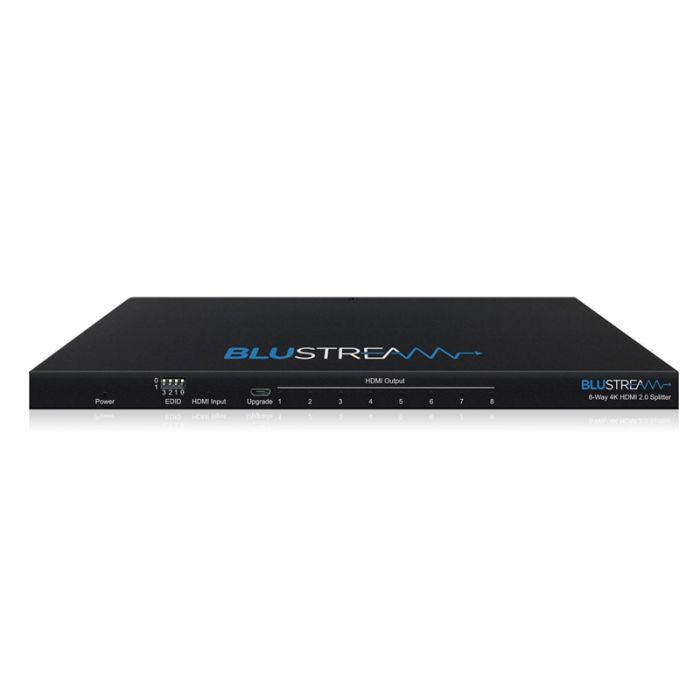

SP18 8-Way HDMI 2.0 Splitter
The SP18 is an 8-way HDMI 2.0 splitter that distributes a single HDMI source to eight simultaneous HDMI outputs. It supports HDMI 2.0 18Gbps, HDCP 2.2 and video resolutions up to 4K @ 60Hz 4:4:4.
For multi-display AV systems, the splitter provides a straightforward way to feed the same high-resolution source to multiple screens from one central point. Advanced EDID management supports more predictable operation when connecting varied displays across the eight outputs.
Key Features
- Feeds one HDMI source to eight displays for broad signal distribution.
- 4K 60Hz 4:4:4 support keeps the splitter aligned with modern UHD sources.
- EDID management helps simplify setup across multiple connected displays.
- Compact 13 mm-high chassis supports rack, cabinet or hidden installation.
- Rack-mounting hardware support makes it easier to integrate into structured AV systems.
- Catalogue Family:
- POWER SUPPLY
- Model:
- SP18
- Product Type:
- Power Supply
- Video Input:
- 1 x HDMI Type A
- Video Outputs:
- 8 x HDMI Type A
- Video Support:
- HDMI 2.0 18Gbps, HDR and 4K @ 60Hz 4:4:4
- Hdcp Support:
- HDCP 2.2
- EDID:
- 4-pin DIP switch
- Dimensions:
- 273 x 109 x 13 mm
- Power Supply:
- 5 V/4 A DC screw connector
- Operating Temperature:
- 0°C to 40°C
