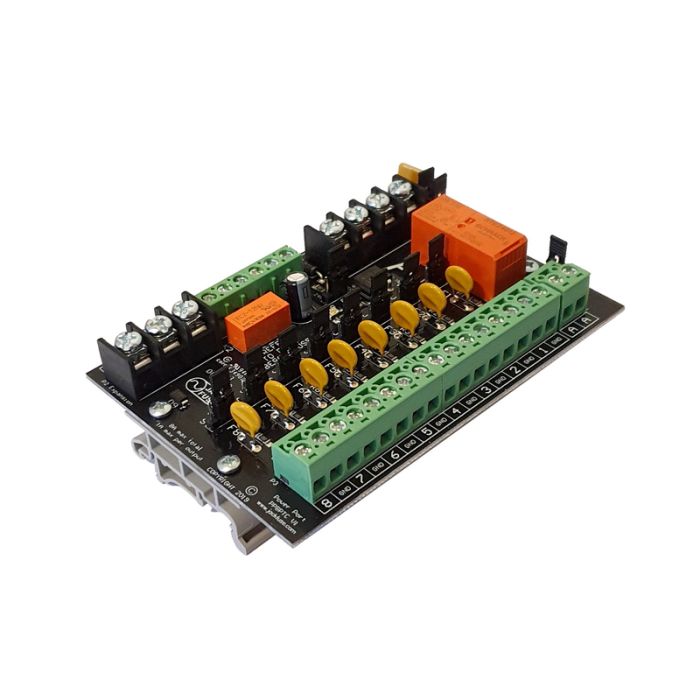

PP8PTC Power Port Fire Trip Power Distribution Module
PP8PTC is a Power Port power distribution module for electronic access control systems. It features eight individual self-healing fused outputs with status LEDs, a fire trip interface, auxiliary dry-contact outputs, an expansion output, and DIN rail mounting.
The module provides fused power distribution and fire trip functionality for electric locks, detectors, keypads, and other access control devices. Monitoring, auxiliary, and expansion functions support access control system integration.
Key Features
- Eight protected outputs for power distribution.
- Integrated fire trip interface for emergency release applications.
- Auxiliary dry-contact outputs for third-party equipment integration.
- Self-healing PPTC fused outputs with status LEDs.
- Expansion output for scalable power distribution.
- Catalogue Family:
- POWER SUPPLY
- Product Type:
- Power Supply
- Input Voltage Range:
- 0-14 VDC
- Fire Relay Coil Voltage:
- 12-28 VDC or dry contact
- Maximum Standard Power Current:
- 8 A
- Maximum Fire Power Current:
- 8 A peak; 20% load current margin recommended
- Maximum Constant Current per Output:
- 1 A
- Fused Outputs:
- 8
- Fuse Type:
- 2 A self-healing PPTC
- Mounting:
- Din Rail
- Dimensions:
- 110 L x 75 W x 50 H mm
- Country of Origin:
- Australia
