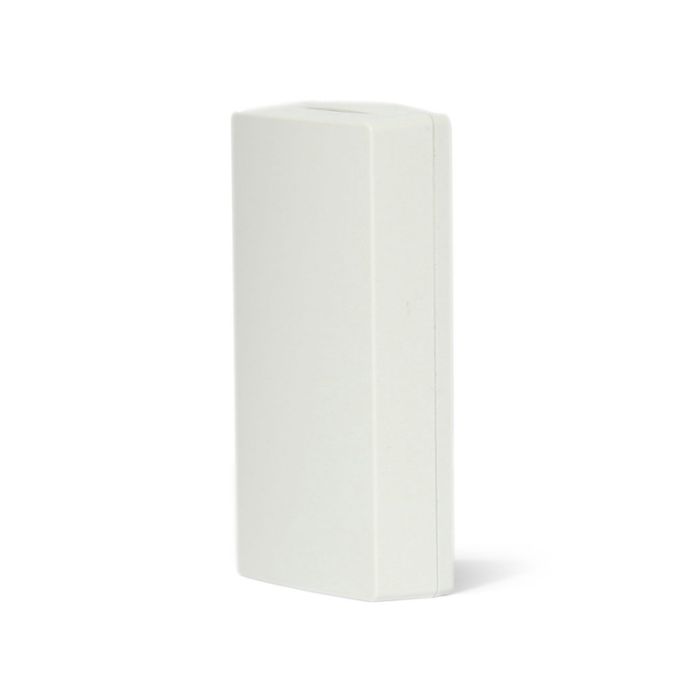

EN1210 Single Input Universal Transmitter
The EN1210 is an Inovonics single input universal transmitter designed for use with standard normally open or normally closed contacts. It is a fully supervised EchoStream wireless device with case tamper protection and a CR123A battery-powered design.
This transmitter suits security installations that need to bring a wired contact or sensor point into an EchoStream wireless system. Its compact housing, mounting plate and support for common contact wiring make it useful for retrofit points, remote doors or other supervised input locations.
Key Features
- Adapts standard contact devices into an EchoStream wireless security system
- Supervised signalling helps maintain visibility of the transmitter and its input point
- Case tamper support assists with device integrity in exposed installation positions
- Battery-powered operation suits locations where new cabling is difficult
- Compact mounting design helps installers place the transmitter neatly near the contact
- Catalogue Family:
- ALARM / INTRUSION
- Market:
- North America, Australia and New Zealand
- Echostream Frequency:
- 902-928 MHz frequency hopping spread spectrum
- Dimensions:
- 3.5 x 1.7 x 0.9 in (8.9 x 4.3 x 2.3 cm)
- Weight:
- 1.9 oz (54 g)
- Typical Battery Life:
- 3-5 years
- Internal Battery Type:
- Panasonic CR123A
- External Contacts:
- Normally open or normally closed
- External Contact Cabling:
- 14-22 gauge wire, unshielded
- Maximum Contact Distance:
- 10 ft (3 m) from external contact to transmitter
- Operating Temperature:
- -4 to 140 F (-20 to 60 C)
- Humidity:
- Up to 90% non-condensing
- Check-In Time:
- 3 minutes for EN1210
- Regulatory Compliance:
- FCC, ISED, RCM and RoHS for EN1210
- Product Type:
- Alarm / Intrusion
