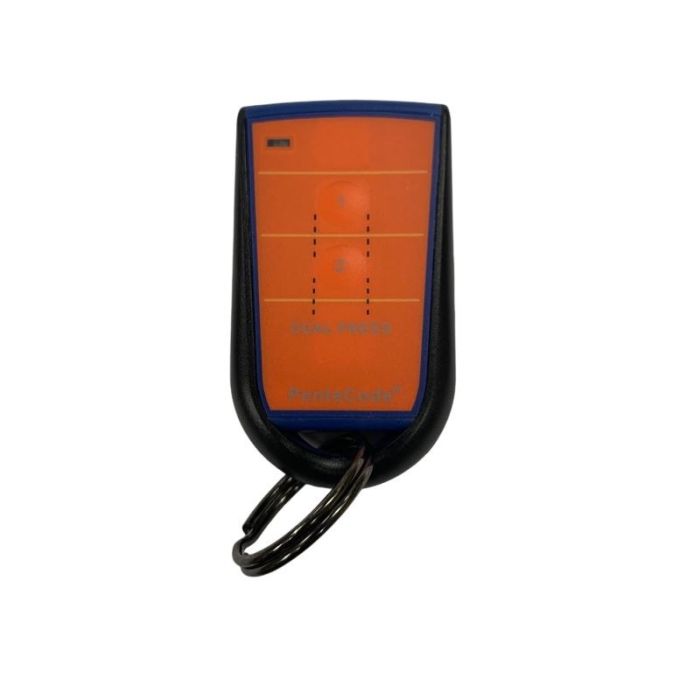

PCK43302DP Elsema PentaCODE 433 MHz Dual Press Keyring Transmitter - 2 Channel
The PCK43302DP is a 2-channel Elsema PentaCODE 433 MHz keyring transmitter designed for secure wireless control of automatic gates, doors and automation systems. It incorporates PentaCODE dual coding technology with Frequency Hopping Spread Spectrum (FHSS).
The transmitter uses Elsema's PentaCODE dual coding system, allowing operation with either a 12-way DIP switch or encrypted coding while simultaneously transmitting across five frequencies using FHSS technology.
Key Features
- 2-channel keyring transmitter.
- Dual coding system with 12-way DIP switch or encrypted coding.
- Frequency Hopping Spread Spectrum (FHSS).
- Simultaneous transmission on five frequencies.
- Up to 200 m operating range (installation dependent).
- Compatible with Elsema PCR series receivers.
- Catalogue Family:
- TRANSMITTERS & RECEIVERS
- Product Family:
- PentaCODE PCK series keyring remote
- Battery:
- 12 V A23
- Channels:
- 2
- Frequency Band:
- 433.100 to 434.700 MHz
- Operating Range:
- Up to 200 m operating range (installation dependent)
- Decoding System:
- Encrypted 17 billion code combinations or on-board 12-way code switch
- Operating Temperature:
- -5 deg C to 50 deg C
- Product Type:
- Transmitters & Receivers
